Ideal for non-stationary requirements where a ground connection is not possible or where a superior power rating is required

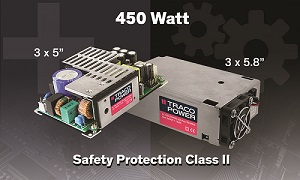

Adding to the TPP 450 high-density 3×5 power supply, the Protection Class II models (TPP 450BA-M Open-Frame Models and TPP 450B-M Enclosed with Fan Models) are ideal for non-stationary requirements where a ground connection is not possible. Potential applications include portable medical equipment, home health care devices and any space-limited application where a superior power rating is required.

The power supply features for the medical market include a double, reinforced 4000 VAC I/O isolation system low leakage current (<100µA) for a 2 x MOPP rating and BF compliance.

High efficiency up to 94 per cent supports convection-cooled operation up to 320 W at +50 degrees Celsius and 450W operation at +65 degrees Celsius with 20cfm airflow. Additional features include:

  • 5 VDC standby
  • 12 VDC variable speed fan output
  • Remote On/Off
  • Power Good Signal

Industrial grade components and advanced thermal management ensure high reliability.

The product models meet medical IEC/EN/ES 60601-1 and industrial IEC/EN/UL 62368-1 safety approvals.

Products are available through TRACO POWER authorised global distributors.
