Protection for Your Electrical Appliances

This circuit saves electrical appliances from damage in case of sudden tripping and resumption of power supply. It does so by switching off the main supply to the load which can only be resumed manually. The circuit does not work in the case of power fluct -- MALAY BANER JEE

- Advertisement -

Here is a very low cost circuit for protecting electrical appliances, such as TV, tape recorder, refrigerator, and other instruments during sudden tripping and resumption of mains supply. Appliances like refrigerators and air-conditioners are more prone to damage due to such conditions.

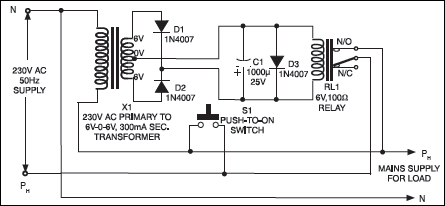

circuit diagram for protecting electrical appliances
circuit diagram for protecting electrical appliances

Circuit operation

The simple circuit given here switches off the mains supply to the load as soon as the power trips. The supply can be resumed only by manual intervention. Thus, the supply may be switched on only after it has stabilised.

The circuit comprises a step-down transformer followed by a full-wave rectifier and smoothing capacitor C1 which acts as a supply source for relay RL1. Initially, when the circuit is switched on, the power supply path to the stepdown transformer X1 as well as the load is incomplete, as the relay is in de-energised state. To energise the relay, press switch S1 for a short duration. This completes the path for the supply to transformer X1 as also the load via closed contacts of switch S1. Meanwhile, the supply to relay becomes available and it gets energised to provide a parallel path for the supply to the transformer as well as the load.

- Advertisement -

If there is any interruption in the power supply, the supply to the transformer is not available and the relay de-energises. Thus, once the supply is interrupted even for a brief period, the relay is de-energised and you have to press switch S1 momentarily (when the supply resumes) to make it available to the load.

Very-short-duration (say, 1 to 5 milliseconds) interruptions or fluctuations will not affect the circuit because of presence of large value capacitor which has to discharge via the relay coil. Thus the circuit provides suitable safety against erratic power supply conditions.

Feel interested? Check out similar projects on the circuits page.
