15 Watt AC/DC Power Supply for Industrial and Medical Type BF Applications

- Advertisement -

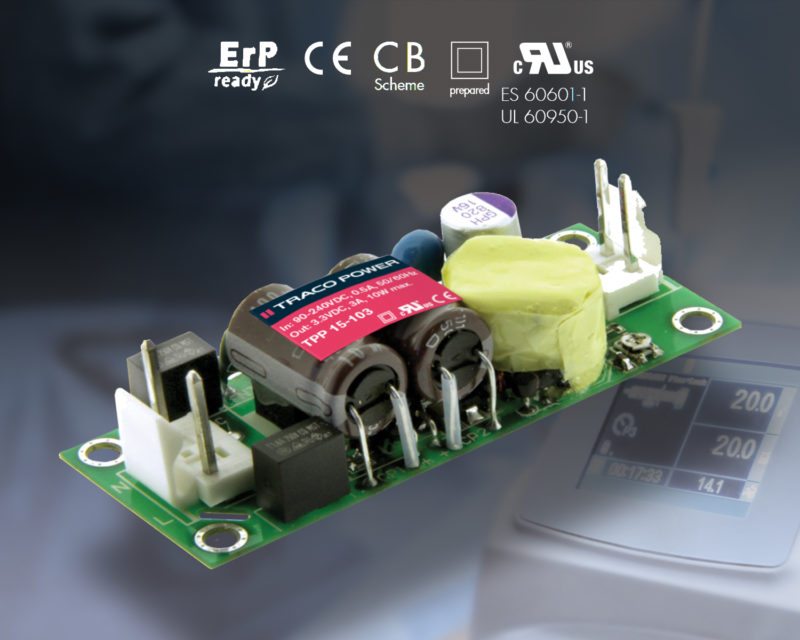

TRACO POWER has announced the release of their TPP15 family of miniaturized, open-frame power supplies with an extended operating temperature range of -40C to +85C and both Industrial and Medical safety approvals.

These 15 watt AC/DC power supplies feature reinforced insulation with I/O isolation of 4,000 VAC, are 2 X MOPP compliant with leakage current below 75µA and are suitable for Medical Type BF (body floating) applications. High efficiency up to 88.5% enables a high-power density package of only 2.61 x 1.00 x 0.62” and convection cooled, full load operation of –40°C to +55°C ambient and extended temperature range to +85°C with 50% derating. No load power-consumption of 0.05W (max) satisfy the requirements of the ErP directive. All models offer Safety Class II Operation (no safety ground required) with safety approvals to IEC/EN/UL 60950-1, IEC/EN/ES 60601-1 3rd edition with compliance to the latest EMC emission standards of IEC 60601-1-2 4th edition. Units are manufactured per ISO 14971, ISO 13485 and IPC-A-610 class 3 standards and backed by a warranty of 5 Years.

- Advertisement -

Products are in stock and available through the TRACO POWER global distribution network with manufacturing lead times of 8-9 weeks. Please visit TRACO POWER official website for specifications, drawings and safety documentation
