Military And Aerospace Power Supplies

- Advertisement -

The power supply technology is designed for military and aerospace applications, offering efficiency, durability, and compliance with standards.

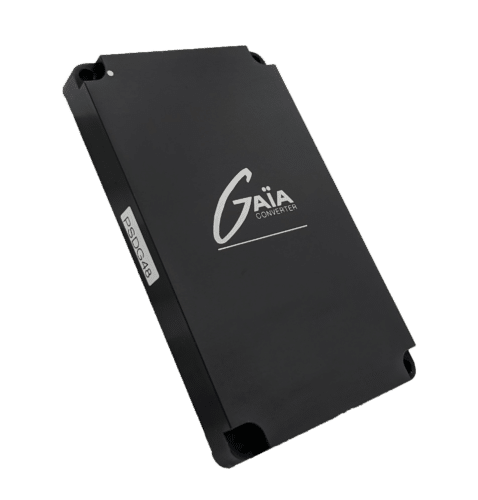

PSDG-48

Gaia Converter has expanded its military and aerospace power systems offerings with the PSDG-48 series board mount module. The series includes isolated power supplies with 2 or 3 outputs, each providing 48W, designed with an emphasis on SWaP-C and a profile of 91×54×9 mm.

The PSDG-48 series is a multi-output, 48W isolated power supply board mount module designed for 24 & 28VDC military and reliability applications. This module meets power supply standards including MIL-STD-461, MIL-STD-704, MIL-STD-1275, ABD100, and DO160. It features an integrated EMI filter, reverse polarity protection, and a hold-up function managed with an external capacitor for 50ms transparency timing.

- Advertisement -

Additionally, the module is capable of handling high and low input voltage transients and inrush current limits, and offers protection against short circuits and over-voltage in outputs. It operates within a temperature range of -40°C to +105°C under full load. The module is suitable for rugged applications, complying with MIL-STD-202 and 810 standards for altitude, humidity, temperature shocks and cycles, as well as mechanical vibrations and shocks.

The PSDG series employs a fixed high-frequency switching topology that achieves high power density and excellent reliability in a low-profile package. The series is fully encapsulated with thermally conductive resin, which ensures optimal power dissipation in harsh environments. Additionally, it offers a complete power supply efficiency of up to 87%.

Some of the3 key power features of the PSDG series include:

  • Input voltage: 16 – 60 Vdc
  • Output power: 48W (configurations of 20W+20W+8W or 40W+0W+8W)
  • Voltage options: Single-ended or symmetrical
  • Efficiency: Up to 89%
  • Operating temperature: -40°C to +105°C (full load)

The module uses a high-frequency switching topology for power density and reliability and is encapsulated in thermally conductive resin to enhance power dissipation in challenging environments.
