Signal Relays For Low-Level Current Switching Applications

By Sharad Bhowmick

- Advertisement -

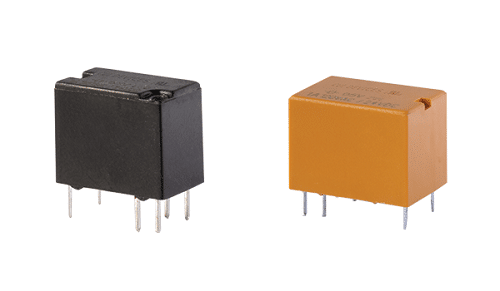

CUI devices have launched a new line of signal relays for low-level current switching applications. The relays offer fast switching and offer a maximum switching current of 2A or 3A in SPDT or DPDT contact formats respectively.

The relays come with a contact rating of 120/125 VAC or 24/30 Vdc at 1A, AuAg overlay contact material and max switching voltages of 120/125/220 VAC or 24/30/60 VDC. The relays come in a compact package and have a carrying coil power ratings from 150 to 450 mW and coil voltages from 3 to 24 V.

- Advertisement -

According to the company, the signal relays are suitable for low-current applications and come in two contact formats: SPDT (1 Form C) and DPDT (2 Form C). Moreover, it offers one of the industry’s best lead times. The models are housed in packages as small as 10.2 x 7.4 x 10 mm while carrying coil power ratings from 150 to 450 mW and coil voltages from 3 to 24 V. The relays are suitable for use in industrial applications, security devices, and T&M instruments and offer a max switching current of 2A or 3A. The signal relay modules are available for purchase.
