Power Modules For Better Energy Efficiency

- Advertisement -

The half-bridge IGBT modules offer low loss technologies for transportation, energy, and industrial applications. Features enhanced compatibility and thermal efficiency.

power module

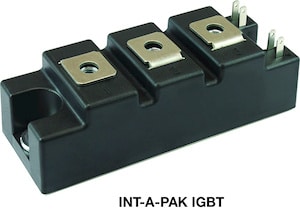

Vishay Intertechnology, Inc. has introduced five new half-bridge IGBT power modules in the redesigned INT-A-PAK package. Built on Vishay’s Trench IGBT technology, the VS-GT100TS065S, VS-GT150TS065S, VS-GT200TS065S, VS-GT100TS065N, and VS-GT200TS065N offer designers a choice of two technologies — low VCE(ON) or low Eoff — to reduce conduction or switching losses in high current inverter stages for transportation, energy, and industrial applications.

The half-bridge devices combine Trench IGBTs with Gen IV FRED Pt anti-parallel diodes with soft reverse recovery characteristics. Offering a new gate pin orientation, the modules’ INT-A-PAK package is now compatible with the 34 mm industry-standard package to offer a mechanical drop-in replacement.

- Advertisement -

The devices will be used in power supply inverters for railway equipment; energy generation, distribution, and storage systems; welding equipment; motor drives; and robotics. To reduce conduction losses in output stages for TIG welding machines, the devices offer a collector to emitter voltage of ≤ 1.07 V at +125 °C and rated current. For high frequency power applications, the two other variants offer low switching losses, with Eoff down to 1.0 mJ at +125 °C and rated current.

Some of the key features of VS-GT100TS065S include:

  • VCES 650 V
  • IC DC, T C = 80 °C: 185A
  • V CE(on) at 100 A, 25 °C: 1.05 V
  • Chip level V CE(on) at 100 A, 25 °C: 0.98 V
  • Speed: DC to 1 kHz
  • Package: INT-A-PAK
  • Circuit configuration: Half bridge

The modules feature 650 V collector to emitter voltages, continuous collector current from 100 A to 200 A, and low junction to cause thermal resistance. UL-approved file E78996, the devices can be directly mounted to heatsinks and offer low EMI to reduce snubbing requirements.

Nidhi Agarwal
Nidhi Agarwal
Nidhi Agarwal is a journalist at EFY. She is an Electronics and Communication Engineer with over five years of academic experience. Her expertise lies in working with development boards and IoT cloud. She enjoys writing as it enables her to share her knowledge and insights related to electronics, with like-minded techies.
