600W AC/DC Features Medical Certification

240

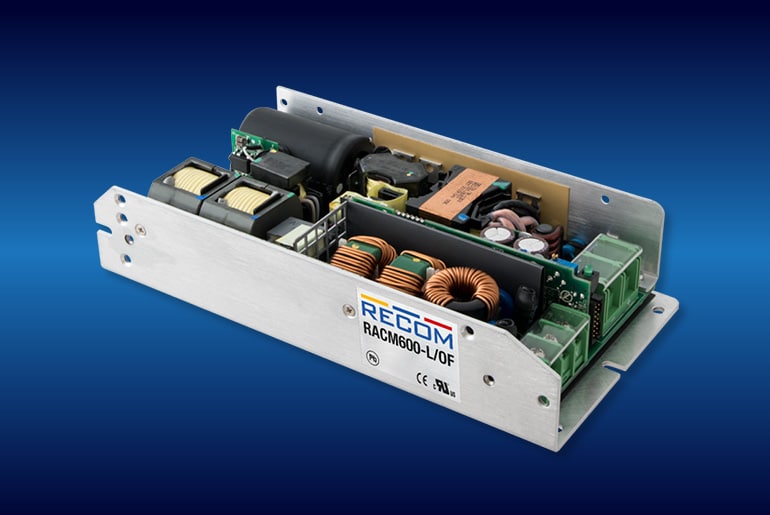

RECOM has announced the availability of its RACM600-L open-frame, AC/DC power supply, rated at 400/450W (115/230VAC) with convection cooling. 600W is available peak or continuously with forced airflow. The product features a universal 80-275VAC input and a single 24V output, adjustable +/-20%, rated at 25A. A standby output at 5V/0.5A is also available.

The RACM600-L is designed for reliable and cost-effective operations in high-availability applications such as medical and process control, with high grade components and conservative design margins. Certifications include 2 x MOPP medical safety (IEC/EN/CSA/ ANSI/AAMI-ES 60601-1) up to 3000m, with leakage current suitable for BF applications. The product is also certified to IEC 62368-1 for IT/multimedia/industrial applications, with reinforced safety isolation to 5000m operation. EMC curve ‘B’ compliance to EN 55032 is achieved with a good margin without external components. Surge and burst immunity is at ‘Level 4’.

The product features an efficiency of up to 93% and the ability to be paralleled for redundancy or increased output with internal OR-ing diodes and active current sharing. ON/OFF control, a power good signal and remote sensing are included, along with a PMBusTM interface, for remote control and monitoring. Comprehensive protection against over-current, over-temperature, over-voltage and short circuits is also included.

The RACM600-L is in an open-frame, rugged, U-channel format of just 197mm x 102mm x 41mm (1U) and includes fixings for chassis-mounting. Operation is from -20°C to +70°C with derating.

RECOM’s AC/DC Product Manager, Michael Schrutka, MSc. comments, “The RACM600-L is a versatile and cost-effective solution for systems that need high reliability and a full range of features, such as medical equipment and automation control.”

Samples and OEM pricing are available from all authorized distributors or directly from RECOM. For more information, please visit www.recom-power.com
