It provides a complete reference design for next-generation robotics, CNC systems, and automated manufacturing solutions.

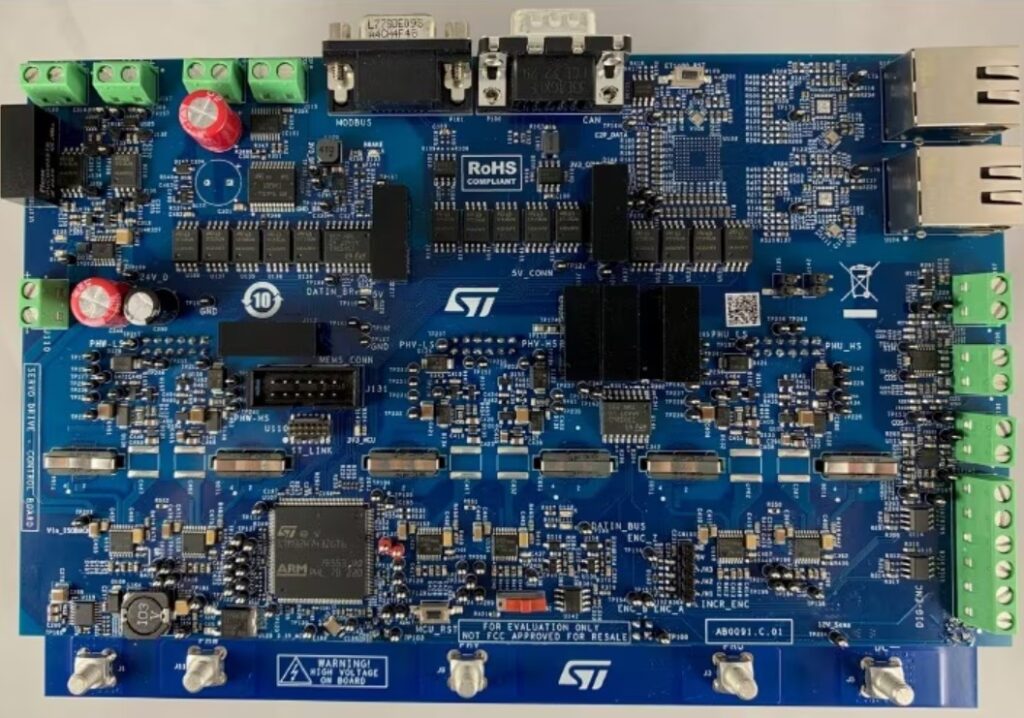

The STEVAL-ISD01KCB from STMicroelectronics is a compact, high-power servo drive evaluation kit designed to address modern industrial motion-control requirements where high efficiency, real-time connectivity, and functional safety are critical. It is intended for applications such as robotic joints, CNC machinery, conveyor systems, and automated production lines, where precise position, speed, and torque control of servo motors is essential. The system is built as a complete kit composed of the STEVAL-ISD01ACB control board and the STEVAL-ISD01BCB power board, forming a tightly integrated architecture that enables high-performance motor control with industrial-grade reliability.
The servo drive is capable of handling high-power motor actuation up to the 22 kW class and supports DC bus voltages up to 800 V, making it suitable for demanding industrial environments. The power stage is designed to deliver high output phase current with forced air cooling while maintaining stable operation under heavy load conditions. The stacked mechanical design allows the control and power stages to be mounted close to the motor, reducing wiring complexity and improving noise immunity, which is particularly important in high-voltage drive systems.
At the heart of the control system, the STEVAL-ISD01ACB board integrates an STM32 microcontroller platform optimized for real-time motor control algorithms. It supports field-oriented control (FOC) and is fully compatible with the STM32Cube ecosystem, including motor control firmware libraries that accelerate development. The system is designed to provide closed-loop control of position, speed, and torque, enabling smooth and precise servo operation across a wide range of industrial use cases.
To ensure high-precision feedback, the platform supports multiple types of position sensing technologies, including incremental encoders, absolute encoders such as EnDat and BiSS interfaces, resolver-based sensing, and Hall-effect sensors. This flexibility allows the drive system to be used with both legacy and modern servo motor technologies, making it highly adaptable in industrial upgrade scenarios where mixed systems often coexist.
The STEVAL-ISD01KCB also incorporates extensive industrial communication capabilities, including CAN, RS-485, and Ethernet-based connectivity with support for EtherCAT architecture (device support depending on configuration). These interfaces allow seamless integration into PLC-based automation systems and real-time motion networks, enabling synchronization of multiple axes in complex robotics and manufacturing systems.
Safety is a key highlight of the design, with built-in support for Safe Torque Off (STO) and Safe Brake Control (SBC), along with diagnostic and protection features that help achieve SIL 2 and PLd functional safety levels. The system is designed in accordance with international safety standards such as IEC 61508 and IEC 61800-5-2, ensuring safe operation even in fault conditions. Hardware-level protection mechanisms such as over-voltage, under-voltage, over-current, and thermal monitoring further enhance system reliability.
Galvanic isolation between the control and power sections ensures robust protection of sensitive digital circuitry from high-voltage switching transients. The isolation architecture is implemented using advanced signal transmission techniques that maintain data integrity while protecting the control electronics from power-stage faults. This is especially important in servo drive systems operating at high bus voltages where electrical stress and noise are significant concerns.
Overall, the STEVAL-ISD01KCB serves as a comprehensive reference design for next-generation servo drives, combining high-power capability, advanced embedded control, flexible sensing, industrial communication, and functional safety in a single platform. It provides engineers with a ready-to-evaluate solution as well as a strong foundation for developing production-grade servo motor control systems for Industry 4.0 applications.
