Extensive Motor Control Support With New Devices

- Advertisement -

Digital signal controllers and microcontrollers that are supported by design tools and development hardware

As electric motors proliferate across a growing range of system applications, developers need products and tools to ensure systems run as efficiently as possible while reducing board size, component count and energy consumption.

- Advertisement -

To assist with these requirements, Microchip Technology Inc. has expanded its motor control offering with the inclusion of digital signal controllers (DSCs) and microcontrollers (MCUs) that are supported by design tools, development hardware, a torque-maximizing algorithm and a refrigerator compressor reference design.

These additions include:

  • dsPIC® DSCs: The cost-optimized, functional safety-ready dsPIC33CK64MC10x DSCs for Field Oriented Control (FOC) motor control is supported by motor control Plug-in Modules (PIMs) for existing motor control development boards and also with a new cost-effective low-voltage motor control development board. MPLAB® X Integrated Development Environment (IDE) and MCC support rapid code development while motorBench® Development Suite provides FOC motor control optimized code generation.
  • PIC32MK MCJ and MCM MCUs for FOC motor control: The second-generation 32-bit MCU devices offer 32-bit floating-point and DSP performance with flexible communications options. By sharing analogue features with the dsPIC33CK, they support seamless migration across device classes. These devices also feature multiple CAN-FD and USB ports. The MCUs are supported in the MPLAB® X Integrated Development Environment (IDE) with three development hardware options. Software support for the PIC32MK includes a suite of motor control software for sensored and sensorless applications via the MPLAB® Harmony v3 Software Framework.

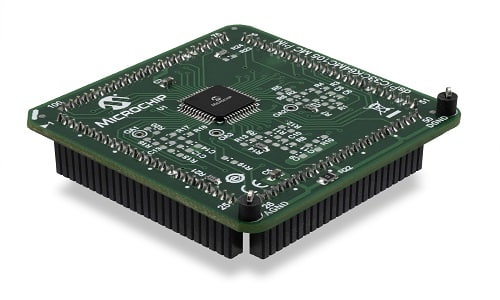

PIC32MK MCM Family Plug-in Module (PIM) MA320211

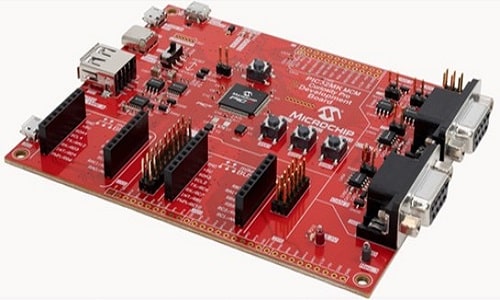

PIC32MK MCM Curiosity Pro Development Board
  • motorBench development suite: Version 2.35 of Microchip’s GUI-based software development tool shortens the time required to spin a motor using FOC and generates optimized source code customized for a given motor. This release expands dsPIC33CK family support, adds a new Angle Track-Phase Locked Loop (AT-PLL) estimator, Field Weakening (FW), Maximum Torque Per Amp (MTPA), Dead-Time Compensation (DTC) and many other new features.
  • Zero Speed/Maximum Torque (ZS/MT) algorithm: Eliminates hall sensors in applications demanding high torque at a standstill or low speeds for low-inductance motors. Support is provided for the dsPIC33 DSCs, SAM and PIC32MK motor control MCUs.
  • dsPIC33CK Low-voltage motor control development board: Provides a platform for application development and a reference for customer board design for the dsPIC33CK family.

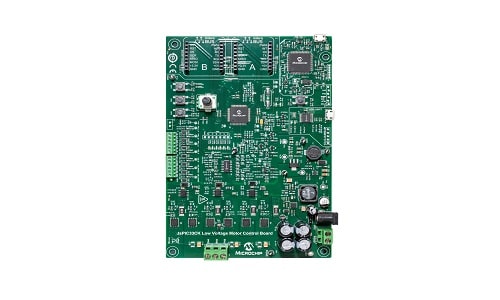

dsPIC33CK LVMC Development Board
  • Low-cost, high-efficiency refrigerator compressor reference design: Joins a growing family of turnkey designs that showcase best practices for application-specific motor control designs that shorten the time to market.
dsPIC33 Refrigerator Compressor Reference Design Board

“New products like Microchip’s dsPIC33C DSC devices with their high analogue integration demonstrate our continued investment in simplifying motor control system design while reducing development and bill of materials costs in automotive, industrial, medical and consumer applications,” said Joe Thomsen, vice president of Microchip’s MCU16 business unit. “Our newly enhanced support ecosystem helps engineers get their designs done faster with the optimum combination of performance, efficiency and reliability.”

The dsPIC33CK64MC105 DSCs are available in six packages as small as 4 x 4 mm with pin counts from 28 to 48 and memory ranging from 32KB to 64KB of Flash with 8KB of RAM. PIC32MK devices are available from 48 to 100 with memory ranging from 256KB to 1MB of Flash, and 64KB to 256KB of RAM.
