Cost-effective solution for meeting the real-world voltage transients of a 24 V industrial power architecture

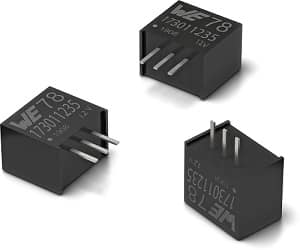

Würth Elektronik has extended its MagI³C-FDSM 36 V power supply family with 12 V output voltage versions. The power module in a SIP-3 package represents a cost-effective solution to meet the requirements for the real-world voltage transients of a 24 V industrial power architecture. The new module operates from 16 to 36 VIN and generates a fixed output voltage of 12 V with current up to 1 A.
The FDSM series MagI³C power modules are fully integrated DC-DC voltage converters with a fixed output voltage. The modules incorporate all of the components needed, like the controller, inductor and input/output capacitors, with the added benefit of thermal overload and short circuit protection.
Since there are no external components required for operation, there is essentially no circuit design needed, which reduces development costs and allows faster time to market new applications. This power module has around 95% efficiency while the linear regulator will have an efficiency of 50%. The standard THT housing for easy mounting is pin-compatible with L78x linear controllers.
Pre-compliance testing has shown both the radiated and conducted emissions on an evaluation board to be below the limits of EMC standards EN55032/CISPR32 Class B.
