Supporting wireless modules in vehicles and industrial equipment, these assemblies deliver sealed, threaded RF interfaces where boards alone fall short.
As wireless communication modules are increasingly deployed in industrial and outdoor environments, engineers face growing challenges around signal integrity, durability, and environmental protection. Systems that rely on compact board level connectors often require more robust external interfaces to ensure reliable performance in harsh operating conditions.

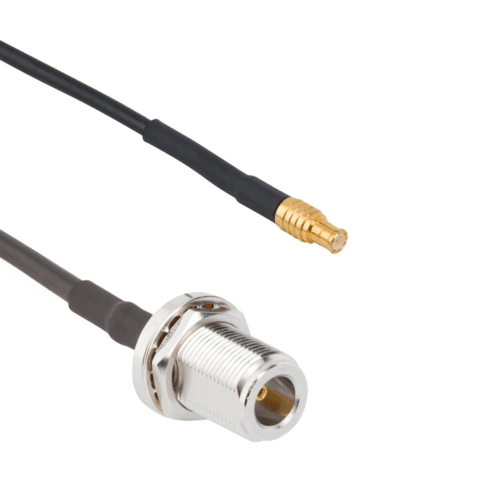

Amphenol RF has expanded its pre configured cable assembly portfolio with MCX cable assemblies designed for wireless communication modules. The assemblies feature MCX straight and right angle plug configurations on flexible RG 174 cable, paired with rugged IP67 bulkhead connectors including SMA, TNC, RP TNC and N Type straight jacks. This between series design enables secure connections from MCX equipped boards to threaded panel mounted interfaces, supporting short distance and low frequency RF applications up to 3 GHz.
The assemblies are intended for use in portable devices, GPS, Wi Fi systems and vehicle based designs across agriculture, construction, earth moving, mining and other heavy industrial applications. External connectors are sealed to protect against temporary ingress of water and fluids, helping prevent system failure caused by environmental exposure or tampering. By combining compact board level connectivity with more robust external interfaces, the assemblies address reliability requirements in demanding installations.
Key features of the cable include:
- MCX straight and right angle plug configurations
- IP67 sealed SMA, TNC, RP TNC, and N Type bulkhead jacks
- RG 174 cable supporting operation up to 3 GHz
- Designed for industrial and outdoor wireless modules
- Available in standard lengths from three to 48 inches
The new MCX assemblies join a growing range of pre configured cable solutions from Amphenol RF, reinforcing the company’s focus on delivering reliable and rugged interconnect options for wireless systems operating in challenging environments.
