e-con Systems Launches 18 MP MIPI Camera Module

- Advertisement -

e-con Systems launches e-CAM180_CUMI1820_MOD, an 18 MP MIPI camera solution for the NVIDIA Jetson Xavier NX platform.

e-CAM180_CUMI1820_MOD is based on the 1/2.3-inch AR1820 sensor from ON Semiconductor. This camera module provides image output at a resolution of 18MP with great details. e-CAM180_CUMI1820_MOD also comes with 4 levels of zoom that allow users to swivel the camera from left to right, tilt it up and down, and zoom in and out of a scene. This MIPI CSI-2 camera module uses the NVIDIA Jetson ISP to produce best-in-class image output in uncompressed YUV format. It has an M12 lens holder which offers customers an opportunity to use the lens of their choice.

- Advertisement -

 Key features of e-CAM180_CUMI1820_MOD

  • 1/2.3-inch AR1820 sensor – Image output at a resolution of 18MP with great details
  • 4 levels of zoom – Allows user to pan, tilt, and zoom in and out of a scene
  • MIPI CSI-2 – Can connect up to three 4-lane MIPI camera modules on Diamond System’s FLOYD carrier board housing NVIDIA Jetson Xavier NX.
  • ISP – Uses the NVIDIA Jetson ISP to produce best-in-class image output in uncompressed YUV format.

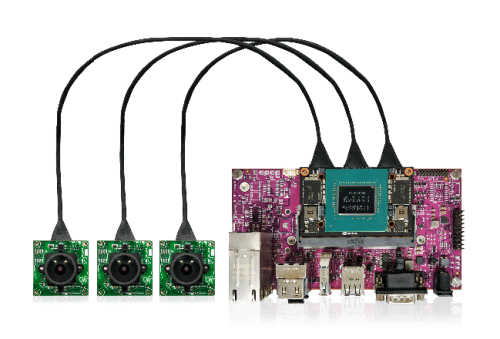

This multi-camera solution comes ready to be evaluated with the NVIDIA Jetson Xavier NX development kit and Diamond System’s FLOYDNX carrier board with the necessary software. The solution allows customers to connect up to three 4-lane MIPI camera modules on the FLOYD carrier board housing NVIDIA Jetson Xavier NX. This MIPI camera module can stream 18MP at 13 fps with 4-lane configuration.
