Fully Encapsulated AC/DC Power Modules

- Advertisement -

Rebutor Electronics, authorized distributor for TRACO Power products in India. TRACO Electronic AG, a leading power supply specialist with more than 35 years experience, dedicated to the design and manufacturing of high quality DC/DC and AC/DC power conversion products.

Miniaturized 7 to 50 Watt AC/DC power modules

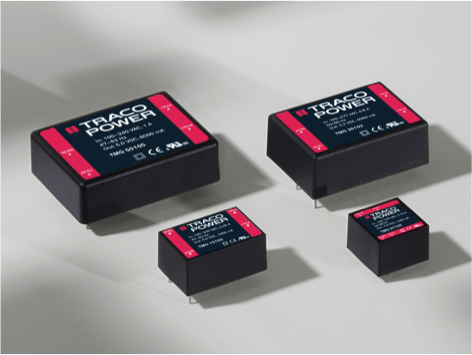

TMG Series AC/DC power modules in fully encapsulated plastic package are energy-efficient and ultra-compact. They are ultra-compact, energy-efficient and cost/performance optimized for prevailing market requirements The high efficiency makes these modules suitable for an operating temperature range of –40°C to +70°C. Together with very low no-load power consumption they are suitable for applications conforming with the ErP directive. The modules are protected against overload, short-circuit and over voltage. EMI/EMC characteristics and the safety approval package qualify them for demanding applications in equipment for industrial or commercial environments. They come with universal input voltage range and the common output voltages of 3.3 VDC to 48 VDC.


• Fully encapsulated power supplies in plasic casing for PCB mount
• Low output ripples and noise
• Fully regulated outputs
• 3000 VAC I/O-isolation
• High efficiency up to 90 %
• Universal input range 90 to 264 VAC
• Operating temperature range:
• –25°C to +70°C max.
• Safety class II prepared
• Short circuit, overload and over voltage protection
