Sensors For Deep-Sea Applications

- Advertisement -

This article covers some important sensors used for different deep-sea applications, including civil, military, research, communication, seismic and energy.

Mysteries of the deep sea, vastness of the blue waters stretching out to the horizon, and the tremendous potential of the oceans for military and civil applications have let humans explore the world of the mighty waters—an effort that is still ongoing.

Deep-sea exploration gives mankind a sense of human progress, because it involves great manpower and technology. It also leads to academic and industry researchers show great interest in deep-sea sensors. There is good progress being made in modern deep-sea research and development with recent advancements in sensors, microelectronics and computers.

- Advertisement -

Modern electronic instruments in oceanography have helped humans explore further deep down the ocean and observe the greatest depths. Electronic systems with low power, accurate and delicate sensors collect vital information, which has helped researchers measure and record the deep-sea environment and tidal data.

Underwater drones and portable submersible robots with intelligent sensors for monitoring water temperature, auto compass heading and depth, turns, pitch and roll have been developed. Due to technological advancements, underwater drones can now move around freely, faster and more easily.

Robots and artificial intelligence (AI) have been developed to explore the oceans where humans cannot reach. Stanford University has developed a robotic mermaid named OceanOne to dive deeper than humans can. This robot’s human-like body with touch sensors can carry out a variety of tasks in the deep sea. Its wrists are fitted with force sensors that give haptic feedback to the operator’s control. These feedback signals can identify actions such as the robot grasping at something firm and heavy, or light and delicate. The brain of the robot reads data and makes sure that its hands keep a firm grip on objects.

Robotic mermaid with touch sensors
Fig. 1: Robotic mermaid with touch sensors (Credit: www.livescience.com)

Nereus is the world’s deepest-diving underwater vehicle. It can be configured to operate as a remotely-operated vehicle (ROV), or operate independently of human control as an autonomous underwater vehicle (AUV). Nereus is capable of exploring and mapping the sea floor using sonars and cameras.

Nereus, the world’s deepest diving underwater vehicle

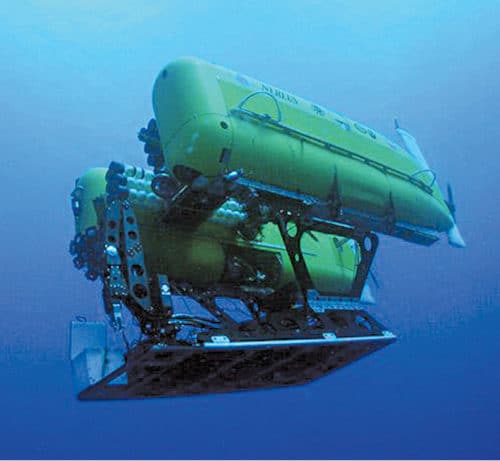

Fig. 2: Nereus, the world’s deepest diving underwater vehicle (Credit: www.bbc.com)

A wide variety of sensor instruments are used in the ocean, including acoustic doppler current profiler, benthic flow meter, bottom pressure and tilt meter, conductivity-temperature-depth (CTD), dissolved oxygen sensor, digital still camera, high-definition video camera, hydrophone, mass spectrometer, optical attenuation sensor, pH and carbon-dioxide sensor, pressure sensor, remote access fluid and DNA sampler, resistivity probe, seismometer, sonar, thermistor array and turbulent-flow current meter.

Ocean Sensor Systems manufactures sensors and wave instrumentation for use in oceans and seas, for the worst environmental conditions.

Sea-Bird Scientific manufactures various products for measuring salinity, fluorescence, nutrients and related oceanographic parameters in marine waters. These tools are used by ocean researchers and key industries engaged in offshore exploration and ocean resource utilisation.

There is no dearth of developments in the fields of deep-sea mining, research, communication, submarines and so on. This article covers some important sensors used for different deep-sea applications, including civil, military, research, communication, seismic and energy.

Types of deep-sea sensors

Let us explore the various types of deep-sea sensors.

DO sensor

DO sensor
Fig. 3: DO sensor (Credit: www.edaphic.com.au)

Dissolved oxygen (DO) meter to assess water quality and measure the amount of dissolved oxygen in a liquid is one of the most important instruments because of its influence on the organisms living in water. DO sensor for depths of up to 6000 metres consists of a pre-amplifier covered by a titanium housing, as shown in Fig. 3. This complete sensor is used to interface CTD probe systems.

Pressure sensor

Seismic activity under the water is monitored by placing pressure sensors on the seafloor. Piezoelectric (quartz crystals) sensors produce electric charge when placed under pressure. These can measure pressure or weight of the water above. High or low pressure of different sections along a fault line determine where tectonic plates are locked up or are trying to move past each other. Pressure builds up between the plates, resulting in earthquakes when these break free.

Pressure sensors are prone to drift and lose accuracy over time. Electronics engineers from the University of Washington are now testing a low-cost, self-calibrating pressure sensor that could be deployed on the seafloor to monitor long-term seismic activity. Data from a deep-sea sensor network could help scientists understand what happens along fault lines.

Pressure sensor with quartz crystals
Fig. 4: Pressure sensor with quartz crystals (Credit: https://spectrum.ieee.org)

pH sensor

Increasing atmospheric carbon-dioxide is driving long-term decrease in ocean pH. Measuring pH in sea water with glass electrodes demands a special sensor construction to avoid mistakes caused by high ionic strength of sea water. The ion sensitive field-effect transistor (ISFET) pH sensor based on Honeywell Durafet ISFET die can be immersed directly in seawater. It is capable of reporting pH with good accuracy.

SeaFET ocean pH sensor
Fig. 5: SeaFET ocean pH sensor (Credit: www.oceanologyinternationalamericas.com)

Sonar

Remote underwater observation is much easier now, because sound navigation and ranging (sonar) technology has become much more advanced. Both passive and active sonar are used in modern naval warfare from water-borne vessels, aircraft and fixed installations. Submarines depend on sonar to a great extent for underwater communication. A new generation of multi-beam sonar designed for use across a wide variety of underwater applications is shown in Fig. 6.

Multi-beam sonar
Fig. 6: Multi-beam sonar (Credit: www.blueprintsubsea.com)

Imaging sensor

Underwater photogrammetry in the deep sea is different from that of land or in space. Rough conditions, high pressures, absence of natural light and refraction are some problems. Attenuation and scattering degrade the radiometric image quality and limit effective visibility.

An optical system for AUVs for the purpose of visual mapping of large areas of the seafloor up to 6000 metres has been developed. Schematic overview of the components of the high-altitude camera system for GEOMAR Remus 6000 AUV is shown in Fig. 7.

Schematic overview of GEOMAR Remus 6000 AUV
Fig. 7: Schematic overview of GEOMAR Remus 6000 AUV (Credit: www.mdpi.com)

Underwater sensor network

Deep sea exploration requires a different approach for communication as compared to shallow water communication. Underwater applications include monitoring, disaster management, military, navigation and sports.

Underwater sensor network (UWSN) is used for underwater explorations. It is a network of autonomous sensor nodes that are spatially distributed underwater to collect temperature, pressure and other water-related data.

UWSN acoustic transceivers used for communication are low-frequency waves, but have long wavelengths suitable for long-distance communication. UWSN finds use in a wide range of applications for management and recovery of disaster monitoring and preventive mechanisms. UWSN with acoustic sensor networks and underwater mobile (ROVs, AUVs) sensor networks can be used on a large scale for exploration in the deep sea.

Designing for UWSN applications is based on common UWSN architectures. One-dimensional (1D) UWSN architecture refers to a network where sensor nodes are deployed autonomously and work on a stand-alone network. Each sensor node directly transmits information to a remote station.

In 2D UWSN, communication is carried in two ways. Each member of the sensor cluster communicates with its anchor node (with horizontal communication link) and then the anchor node communicates with the surface buoyant node (with vertical communication link).

In 3D UWSN architecture, sensors deployed in the form of clusters are anchored at different depths and heights.

4D UWSN architecture is a combination of fixed 3D UWSN and mobile UWSN. Mobile underwater ROVs collect data from anchor nodes and relay it to the remote station. A typical 4D UWSN architecture is shown in Fig. 8.

A typical 4D UWSN architecture
Fig. 8: A typical 4D UWSN architecture (Credit: www.researchgate.net)

Oceans of the future

Development for the next-generation ocean monitoring sensor system has already begun in the US, Japan and some European countries. It features a device called node, which is installed at the bottom of the sea and is connected to various sensor systems using an ROV.

US Defense Advanced Research Projects Agency (DARPA) has proposed intelligent floats similar to the Internet of Things (IoT). Instead of linking devices and sensors to the Internet, the Ocean of Things wire the world’s oceans with a network of sensors, capable of recording vast amounts of data about the environment.

US Ocean Observatories Initiative provides researchers with spatial and temporal data from the ocean’s surface all the way down to the deep sea. It is planning to launch robots to chart the world’s oceans, with the goal of mapping everything by 2030.

A new cable network infrastructure has been developed for future expansion to meet the growing needs of science and technology over the next two to three decades (lifespan) of the network. Node functionality and sensor arrays in the network include seismic array, full water column mooring and tsunami warning system.

To sum up

Various environmental conditions of the sea, including temperature, pressure and currents, can be easily monitored with sensors. Modern electronic sensors, microelectronics, nanotechnology, powerful computers and high-bandwidth cables in the oceans will likely lead to unprecedented advancements in ocean exploration and sensing in the next few decades.

The deep sea needs to be explored not only for extracting rich resources for human needs, but also for detecting earthquakes and other related natural disasters for human safety. Underwater sensor networks along with ROVs and AUVs will help humans explore deeper in the sea.
