USB Power Booster

The USB serial bus can be configured for connecting several peripheral devices to a single PC. It is more complex than RS232, but faster and simpler for PC expansion. Here we configure it as a USB power booster for connecting multiple applications.

USB Power Booster Circuit

Since a PC can supply only a limited power to the external devices connected through its USB port, when too many devices are connected simultaneously, there is a possibility of power shortage. Therefore an external power source has to be added to power the additional external devices.

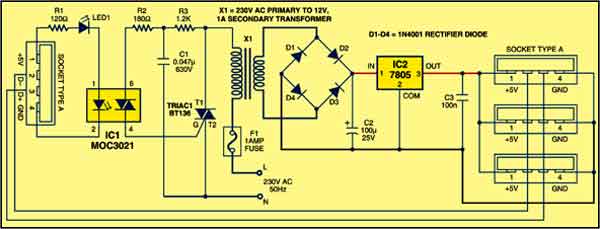

Circuit of the USB power booster
Circuit of the USB power booster

In USB, two different types of connectors are used: type A and type B. The circuit presented here is an add-on unit, designed to add more power to a USB supply line (type-A). When power signal from the PC (+5V) is received through socket A, LED1 glows, opto-diac IC1 conducts and TRIAC1 is triggered, resulting in availability of mains supply from the primary of transformer X1. Now transformer X1 delivers 12V at its secondary, which is rectified by a bridge rectifier comprising diodes D1 through D4 and filtered by capacitor C2.

Fig. 2: Pin configurations of moc3021, Bt136 and 5v regulator 7805
Fig. 2: Pin configurations of moc3021, Bt136 and 5v regulator 7805

Regulator 7805 is used to stabilise the rectified DC. Capacitor C3 at the output of the regulator bypasses the ripples present in the rectified DC output. LED1 indicates the status of the USB power booster circuit.

Construction & testing

Assemble the circuit on a general purpose PCB and enclose in a suitable cabinet. Bring out the +5V, ground and data points in the type-A socket. Connect the data cables as assigned in the circuit and the USB power booster is ready to function.
