High-Resolution X-ray Inspection For PCBs

- Advertisement -

It has high-resolution imaging capabilities, compact design, and intuitive interface, making it perfect for precise inspection of PCBs, BGAs, LEDs, and more.

OLYMPUS DIGITAL CAMERA

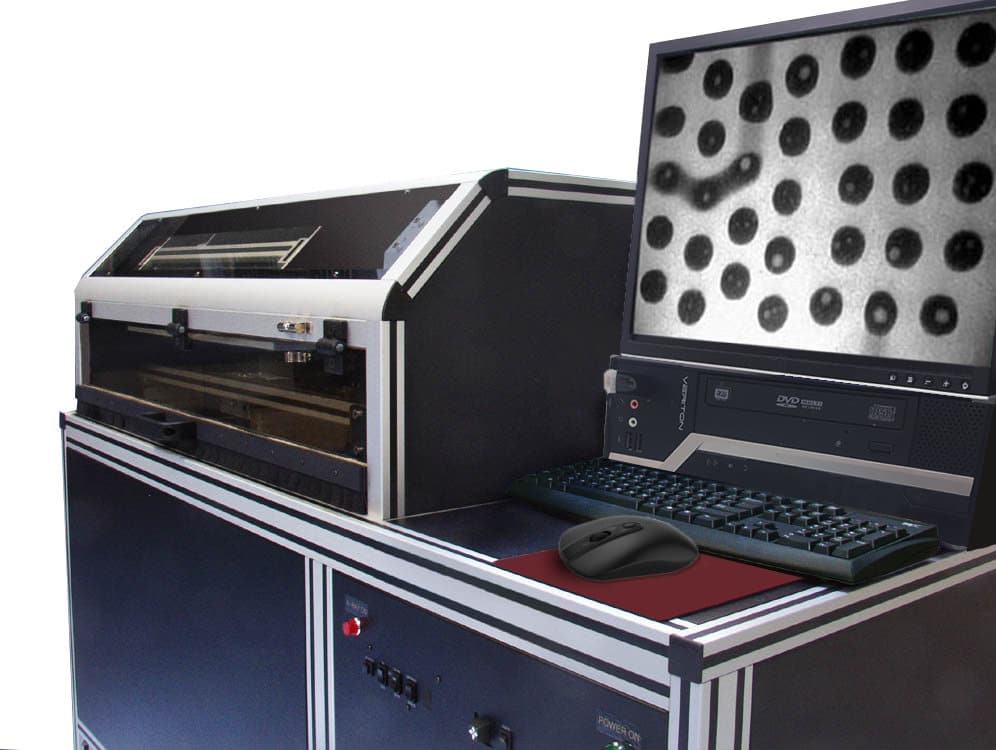

Introducing the Glenbrook RTX Series, a range of modular, real-time X-ray inspection systems designed for flexible production environments, including circuit board manufacturing. Each system offers easy upgradeability and customizable configurations to meet diverse production needs. All hardware and software components are fully compatible, ensuring long-term value and reliability. The RTX-113HV MicroTech is specifically engineered for high-resolution inspection of PCBs, BGAs, QFNs, LEDs, sensors, medical devices, and other packaged components. Its compact design and intuitive interface make it an ideal choice for production environments requiring precise and efficient quality control.

Specifications include:

- Advertisement -
  • Dimensions: 60”W x 33”D x 50”H
  • Operating voltage: 120v or 220v, 50-60Hz
  • Anode Voltage: 40kV-80kV, PC-controlled
  • Anode Current: 20-150 microamps
  • Focal Spot to Image Plane Distance: 4-6 inches

The system is equipped with an 80 kV, 5-micron focal spot X-ray tube, which ensures high-resolution imaging, making it ideal for inspecting dense BGA packages with metal heat sinks. Its cabinet design is capable of accommodating large PCBs up to 18″ x 24″, providing versatility for different production scales. A motorized X-Y positioner, with a 15″ x 15″ scan area, allows for thorough inspection across the x-y axis. The system offers a spatial resolution of up to 100 lp/mm when using the MicroTech™ option, delivering exceptional detail for critical inspections, including the ability to resolve .001 gold wire. Additionally, it features 100x geometric and 225x optical magnification for enhanced imaging capabilities, along with an XRTV Zoom Camera that offers 4X-50X magnification for detailed visual inspections.

The system is designed to easily integrate into busy production lines, meeting the demands of lead-free solder inspection. Its high voltage X-ray source ensures clear identification of production faults, particularly in complex components. It offers a reliable, high-performance solution for precise X-ray inspection in a variety of production settings.Ideal for demanding production lines, the system offers unparalleled detail and efficiency in quality control.
