A new ultra-low-profile RF adapter bridges SMP and SMPM interfaces with high-frequency performance up to 40 GHz, enabling reliable, tool-free connections for space-constrained applications in test systems, radar, high-speed computing, and communications.

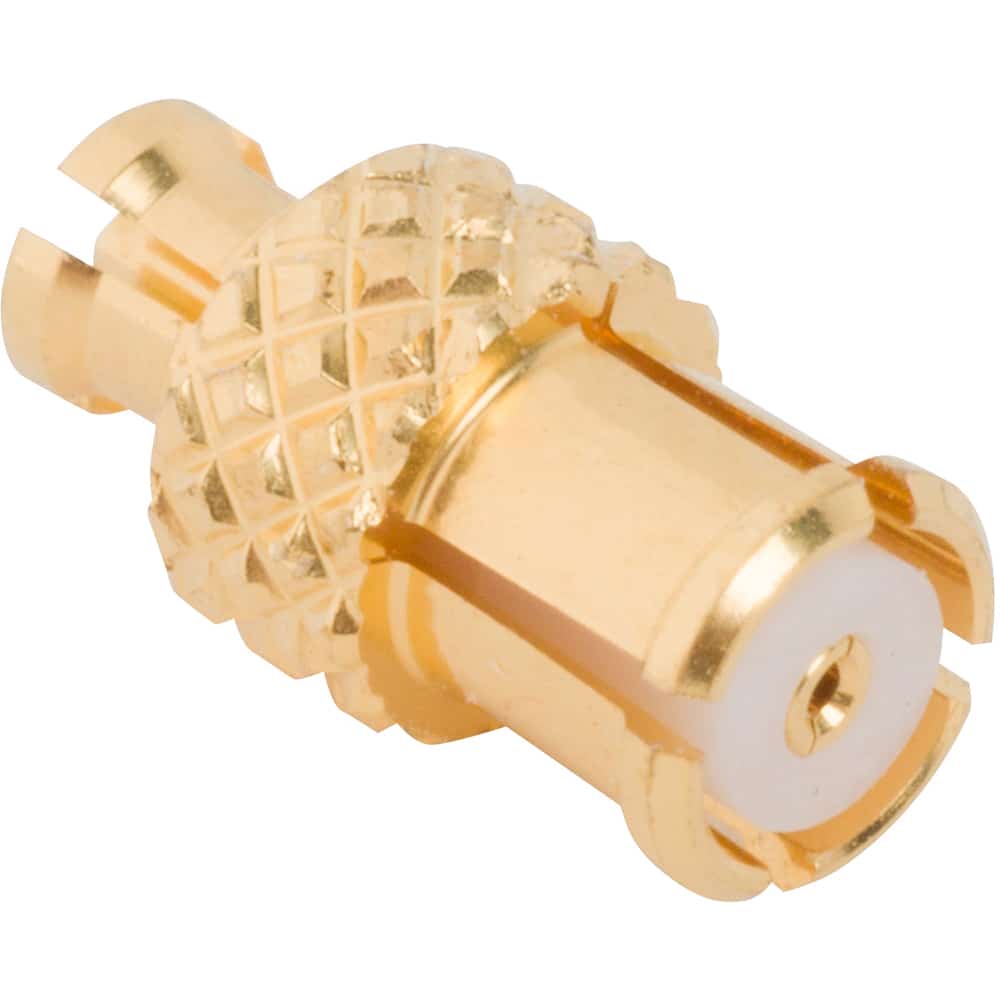

Amphenol RF has expanded its coaxial adapter portfolio with the introduction of a new SMP straight plug to SMPM straight plug adapter—an ultra-compact, high-performance solution built for space-limited, high-frequency environments. Measuring just 7.24 mm in length, this precision-engineered adapter enables seamless bridging between SMP and SMPM interfaces without compromising signal integrity.
The key specifications include:
- Frequency range: up to 40 GHz
- Length: 7.24 mm
- Material: Gold-plated beryllium copper with natural PTFE insulator
- Coupling: Push-on mechanism
Featuring a convenient push-on coupling mechanism, it allows quick, tool-free mating and unmating, making it ideal for use in test and measurement systems, radar applications, high-speed computing, and advanced communication networks. Designed to operate at frequencies of up to 40 GHz, the adapter delivers exceptional electrical performance in a low-profile package. Its gold-plated beryllium copper body and contact ensure durability, corrosion resistance, and excellent conductivity, while the natural PTFE insulator provides superior dielectric properties.
The inclusion of radial and axial float accommodates minor misalignments when used with SMP or SMPM board-mount connectors, reducing mechanical stress and enhancing long-term reliability. This drop-in, off-the-shelf solution offers engineers both performance and flexibility, minimizing design complexity by allowing effortless switching between SMP and SMPM interfaces. Fully compatible with all industry-standard SMP and SMPM connectors, it supports fast integration into existing systems, helping speed time-to-market while reducing the need for multiple connector types. Whether in prototyping, lab testing, or high-volume production, the SMP to SMPM adapter provides a cost-effective and reliable way to achieve high-density RF connections.
The adapter is designed for a wide range of applications, including precision test equipment, advanced radar systems, high-speed computing platforms, and modern communication networks. With this latest addition to its adapter range, Amphenol RF reinforces its commitment to delivering precision-engineered interconnect solutions for the most demanding RF applications.
