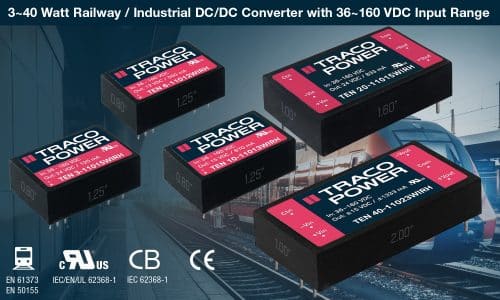

3-40 Watt Range of Railway / Industrial DC-DC Converters with 36~160 VDC Input

- Advertisement -


TRACO POWER announces the new TEN-WIRH range of 3~40 watt high-reliability DC-DC converters in compact and fully encapsulated footprints with an ultra-wide, 4:1 input range of 36~160 VDC.

The TEN-WIRH series includes 5 power platforms covering 3 / 6 / 10 / 20 / 40 Watt power levels with single and dual outputs ranging 3 ~ 24 VDC and high efficiency operation up to 90%. All models feature 3,000 VAC reinforced I/O Isolation; an internal filter for EN 50121-3-2 compliance (EMC for Rolling Stock) and meet EN55032 Class A Emissions (conducted & radiated); Remote on/off control; and embedded protection from under-voltage input, short-circuit, over-temperature and over-voltage conditions. Single output models have a minimum +/-10% output adjustment range. The proven and certified design guarantees highest resistance against thermal shocks, moisture, mechanical shocks, and vibration. With an extended operating temperature range of -40°C up to +95°C without derating (depending on the series/model) makes them ideal for harsh environment applications in both railway and industrial applications.

- Advertisement -

All models are EN 50155 certified which includes EN 61373 for mechanical shock and vibration and EN 45545-2 for fire behavior. The TEN-WIHR series are IEC/EN/UL 62368-1 approved for IT & industrial electronics equipment and supported with a 3 year product warranty.
