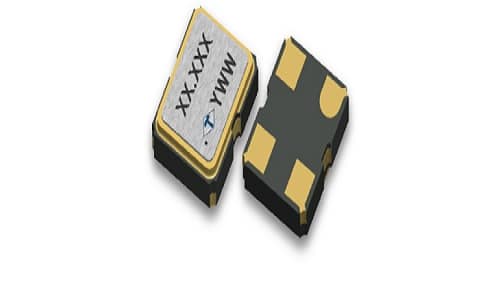

Ultra Low Power 32.768 kHz Quartz Oscillator

- Advertisement -

Taitien’s 32.768 kHz crystal oscillator (XO) has demonstrated outstanding performance in a wide range of product applications. Our products include a miniaturised 32.768 kHz XO with a size of only 2.05 x 1.65 mm (OZ-I series). The design of the OZ-I series overcomes the challenge of miniaturisation while effectively ensuring the excellent accuracy of the clock signal. Since many low-power and portable product applications are in standby mode most of the time, the system must be able to reduce the power consumption of this mode. Leveraging the low-power integrated circuit design, the highest power consumption of Taitien’s 32.768 kHz clock signal source is only 10 µA. The frequency stability within the industrial temperature range of -40°C to +85°C can reach ±20 ppm and it can achieve a start-up time of 2 ms.

Key features:

- Advertisement -
  • Industry’s smallest size of 2.05 x 1.65 mm
  • Excellent frequency stability as low as ±20 ppm
  • Wide temperature range from -40°C to +125°C
  • Super low power consumption (10µA the highest)
  • Fast start-up time of 2 ms

Application:

    • edge computing
    • wearable devices
    • IoT
    • security
    • smart home
    • consumer electronics
    • communication equipment
    • smart city
    • Other electronic products
