Reference Design For A Photoelectric Smoke Detector

Primarily targeting home safety and security systems, such as household and photoelectric smoke detectors, it leverages its high precision and reliability to detect environmental changes.

Smoke detectors are essential for fire safety, offering early warnings by detecting smoke, which can save lives and minimise property damage. They are widely used in homes, businesses, and industries to protect people and assets. The effectiveness of smoke detectors in reducing deaths, injuries, and property loss from fires is well-documented. With technological advancements, their integration into smart homes and industrial safety systems has further improved their utility, establishing them as crucial for modern safety measures.

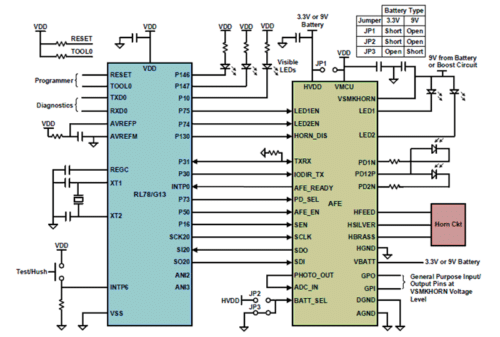

The RAA239101 reference design by Renesas Electronics Corporation is an Analog Front-End (AFE) Integrated Circuit (IC) designed for low-power consumption, serving as the core component in developing comprehensive smoke detection systems. In conjunction with a microcontroller, a photoelectric emitter/detector setup, a horn, and a few external components, this IC constitutes a full-fledged smoke detector solution. It accommodates a broad power supply range, operating on a 3V to 5V or 9V battery, and incorporates a Low-Dropout Regulator (LDO) to power the microcontroller efficiently. A notable feature of this IC is its battery monitoring capability, which enables it to trigger an alarm upon detecting low battery levels.

It has a dual LED driver facilitates the pulsing of smoke-detection LED emitters with an adjustable current via a Digital-to-Analog Converter (DAC), enhancing its smoke-detection efficacy. It features two photodiode receiver channels with Adjustable Gain Amplifiers (AGAs), controlled by an Analog-to-Digital Converter (ADC), to accurately sense smoke particles through the scattering of LED light in a detection chamber. This function underscores the IC’s capability to detect smoke with high precision. Featuring ultra-low power consumption, the device is versatile, supporting both 9V batteries and a range of 3V to 5V batteries. It includes an LDO for microcontroller power supply, a 10-bit ADC for comprehensive voltage measurement across seven analog pins, and the capacity to drive two LED emitters with 8-bit current control from 45mA to 600mA. The inclusion of two photodiode receivers with programmable gain amplifiers, general-purpose input/output (IO) ports, a horn driver with clamp diodes, and a Serial Peripheral Interface (SPI) for communication, renders the RAA239101 a fully integrated solution for a variety of electronic applications.

This ensures an enhanced level of safety and peace of mind for residential environments, highlighting its critical role in the development of effective smoke detection solutions. Renesas Electronics Corporation provides a complete package for this reference design. For more information, click here.
