Compact and efficient, these converters provide high isolation, wide input flexibility, and multiple protection features for modern embedded and industrial designs.
Compact and efficient power conversion is increasingly important in industrial and embedded systems where space, thermal performance, and reliability must be carefully balanced. DC-DC converters are expected to support wide input voltages, operate reliably in harsh environments, and comply with global safety standards while remaining easy to integrate into compact designs.
Traco Electronic addresses these requirements with the TMR 10WI series of isolated DC-DC converters. The 10 watt series is designed for versatile and space constrained applications, offering wide input voltage options:
- 4.5 – 18 VDC,
- 9 – 36 VDC, and
- 18 – 75 VDC
High efficiency of up to 89% enables the converters to be housed in a compact SIP 8 plastic package without compromising thermal performance. The series integrates multiple protection and control functions to ensure reliable operation in demanding environments. These include short circuit protection, over current limitation, under voltage lockout, and remote on off control. Certified to IEC EN UL 62368 1, the converters support an operating temperature range from -40℃ to plus 70℃ , are rated for operation at altitudes up to 5000 metres, and provide 1500 VDC input output isolation.
Available in single and dual output configurations, the TMR 10WI series is designed to support a wide range of industrial and embedded power applications where compact size, consistent performance, and compliance are critical.
Key features of the converters include:

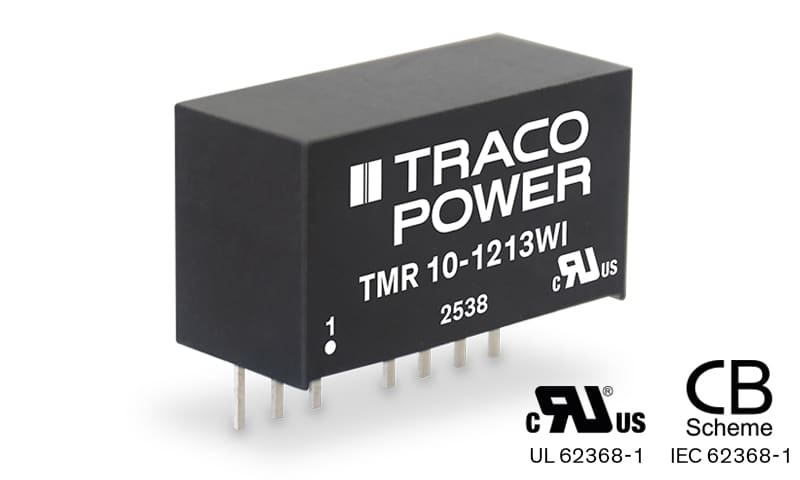

- 10 watt isolated DC DC converter in compact SIP 8 package
- Wide input voltage options up to 75 VDC
- High efficiency up to 89%
- Operating temperature from -40℃ to plus 70℃
- 1500 VDC input output isolation and remote on off control
With its combination of compact form factor, wide input flexibility, and robust protection features, the TMR 10WI series offers a practical and reliable power conversion solution for modern industrial and embedded system designs.
