A vector network analyzer brings RF testing, signal analysis, and fault detection into a smaller footprint, giving engineers capability for development and production.

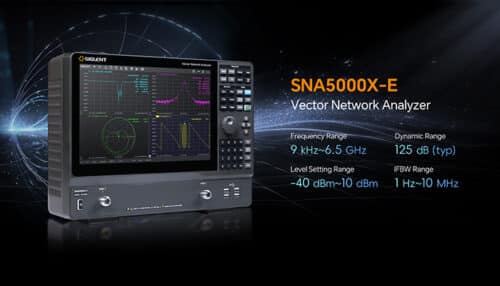

Siglent Technologies has introduced the SNA5000X-E Vector Network Analyzer, an instrument designed for RF measurement tasks. The analyzer covers frequencies from 9 kHz to 6.5 GHz and delivers a dynamic range of 125 dB, targeting engineers in R&D, education, and production testing who need vector network analysis without the overhead of higher-end systems.
Positioned as the model in the SNA5000 Series, the SNA5000X-E retains the measurement architecture of the SNA5000A family while reducing cost for test applications. It offers 1 Hz frequency resolution, IF bandwidth from 1 Hz to 10 MHz, and output power from –40 dBm to +10 dBm, supporting RF characterization tasks.
The analyzer supports S-parameter measurements and differential analysis for evaluating RF components, interconnects, and signal paths. Time-domain analysis helps identify impedance discontinuities and locate faults, while spectrum analysis extends its use beyond network measurements. An eye diagram function adds signal integrity visibility for high-speed designs, reducing debugging time during development.
To improve measurement accuracy in test setups, the SNA5000X-E includes tools such as fixture removal, port extension, de-embedding, and impedance conversion. These functions help compensate for cable losses, delay, and fixture effects—sources of measurement error in RF environments.
For production and automated testing, the system includes filter characterization for extracting parameters such as insertion loss and bandwidth, along with formula calculations. Remote operation is supported through SCPI commands and a WebServer interface, allowing integration into automated test systems and production workflows.
The hardware is built for labs and manufacturing lines. With a depth of 12.6 cm and a weight under 5.4 kg, the unit occupies less bench space than VNAs. A 12.1-inch touchscreen, multi-window display capability, and visualization modes simplify test setup and result analysis.
The SNA5000X-E reflects a trend in RF test equipment toward instruments that prioritize measurement performance over features. For users focused on vector network analysis, it offers a balance of capability, size, and cost.
