Motherboards Designed To Maximize The Performance Of Intel Processors

By Jay Soni

- Advertisement -

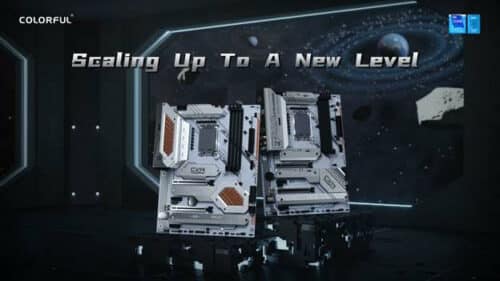

Colorful has introduced Motherboards that can maximize the performance of 13th Gen Intel Core CPUs Intel Z790 Series with its 16+1+1 (55A) power phase and 6-layered PCB design.



Credit : Colorful

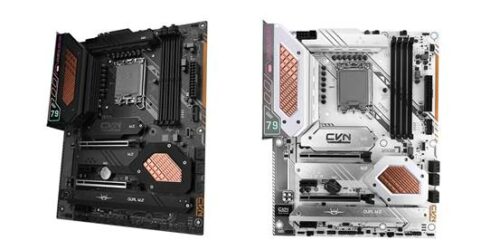

The CVN Z790D5 GAMING FROZEN and CVN Z790D5 GAMING PRO motherboards are designed for enthusiasts looking into maximizing the performance out of the 13th generation Intel Core processors with its 16+1+1 (55A) power phase and 6-layered PCB design. Both motherboards come with four PCIe Gen4x4 M.2 slots for NVMe SSDs.

- Advertisement -

The CVN Z790M FROZEN D5 micro-ATX motherboard is a compact powerhouse, ideal for enthusiasts that want a smaller build without compromising on performance and features. The CVN Z790M FROZEN D5 motherboard features a 12+1 power phase design for modest overclocking. It comes with three PCIe Gen4x4 M.2 slots offering plenty of NVMe SSD support. This motherboard is also fitted with Realtek 2.5 GbE LAN and Wi-Fi 6.

Credit : Colorful

The CVN Z790 GAMING FROZEN and CVN Z790M FROZEN motherboards, both featuring DDR4 memory support for builders looking into a cheaper way to upgrade to the new Intel 13th generation platform. Builders have an ATX motherboard option with the CVN Z790 GAMING FROZEN and a compact micro-ATX option with the CVN Z790M FROZEN motherboard.

Key Features
  • Support for 12th Gen and 13th Gen Intel Core Processors
  • Intel Z790 Chipset
  • 16+1+1 Power Phase Design
  • DDR5 memory support, up to DDR5-6400 (OC)
  • 4X PCIe Gen4x4 M.2 slots
  • 2.5 GbE LAN + Wi-Fi 6 (GAMING FROZEN)
  • CPU : Intel® 13th & 12th Generation Core™ Processor
  • Chipset : Intel Z790
  • Power supply phase : 16+1+1 (55A) Power Phase
  • Memory support : 4*DDR5 DIMM Socket Dual-channel, supports DDR5 6400/6200/5600/4800 memory
  • Expansion Slots : 1*PCI-E 5.0 x16, 1*PCI-E4.0 x4, 2*PCI-E 3.0 x1
  • Storage : Support 4 x M.2 slots and 6 x SATA 6Gb/s
    1*M.2_1: Type 2242/2260/2280(CPU) (PCIE GEN4 X4)
    1*M.2_2: Type 2242/2260/2280(PCH) (PCIE GEN4 X4)
    1*M.2_3: Type 2242/2280(PCH) (PCIE GEN4 X 4)
    1*M.2_4: Type 2242/2260/2280(PCH) (PCIE GEN4 X4)
  • Wireless LAN/BT
    GAMING FROZEN: RTL8125GB-V2.5G LAN (2.5G); WIFI 6
    GAMING PRO: RTL8125GB-V2.5G LAN (2.5G)
  • Internal Connectors :

– 1*24-pin ATX Power Supply connector
– 1*8-pin 12V Power connector
– 1*4-pin 12V Power connector
– 4*USB2.0;
– 2*USB3.2 GEN1(5G);
– 1*USB3.2 GEN1 5G(Type-C)

  • I/O Ports :
    – 4*USB 3.2 GEN1 5G Type-A
    – 1*USB 3.2 Gen 2 20G Type-C
    – 1*USB 3.2 Gen 2 10G Type-A
    – DP+HDMI
    – BIOS Update Button
  • Audio : 8-Channel High-Definition audio CODEC
  • FORM FACTOR : 245mm*305mm
