A radar sensor measures solids and liquids in tanks and vessels. It continues measuring during turbulence, condensation, and buildup inside processing equipment.
BinMaster has introduced the CNCR-400 series, a compact non-contact radar level sensor designed for smart inventory control in food, beverage, and pharmaceutical manufacturing. The sensors are housed in a small stainless-steel enclosure and are designed for use in sanitary processing environments.
At just 6 inches in length and 1.5 inches in diameter, the CNCR-400 sensors are intended for small processing vessels such as bins, tanks, hoppers, and mixers with agitators. They use 80 GHz radar technology to measure material levels with accuracy within 5 mm. The sensors can maintain reliable performance even in conditions such as turbulence, condensation, and material buildup. Each sensor can measure both bulk solids and liquids at distances up to 49 ft (15 m).

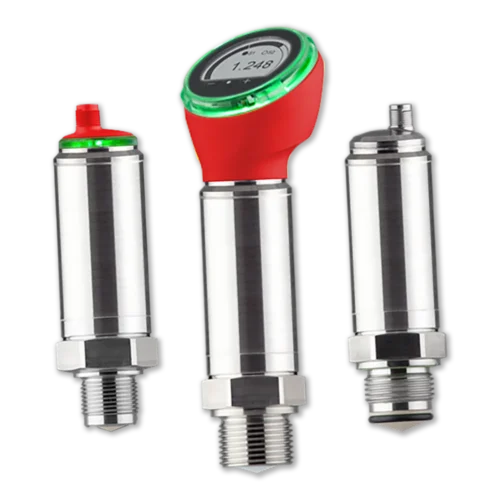

The CNCR-400 radar series is available in three models. The Digital Display (DD) model includes a digital readout on the sensor face along with a light ring that supports programmable colors for visual alerts. The Light Ring Indicator (LRI) model features a programmable light ring that can signal critical high or low inventory conditions. The Stainless-Steel Only (SS) model is designed for vessels where local alerts or visual cues are not required and offers a cost-effective option for continuous process monitoring.
A key feature of the CNCR-400 series is its compatibility with BinCloud. The software allows users to view bulk material levels in real time from anywhere using a phone, tablet, or PC. From a single facility to multi-national operations, operators can monitor inventory for every bin and plant location through one login and interface.
The sensors provide multiple output options, including 4-20 mA, NPN/PNP, and IO-Link. Setup and configuration can be completed using a Bluetooth application on a mobile phone. The radar units are rated IP66, IP67, and IP69 for long-term durability and offer 0.75-inch and 1-inch NPT connection options.
The compact level sensors include standard c-UL-US approvals for ordinary locations and also carry worldwide hygienic certifications, including FDA, 3-A, and EHEDG approvals.
