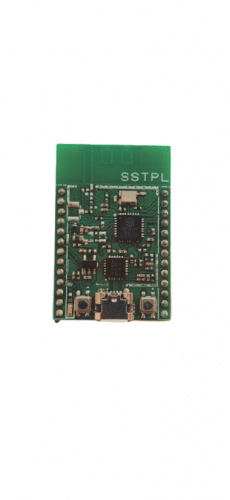

WiFi+BLE subsystem : MiniMOD-W24

A complete WiFi+BLE subsystem that complies with IEEE 802.11b/g/n and supports Station mode, SoftAP mode, SoftAP + Station mode.



Features of Bluetooth

• 32 Bit RISCV single core processor with a four-stage pipeline
• Core at 160 MHz
• 384 KB ROM
• 400 KB SRAM (16 KB for cache)
• 8 KB SRAM in RTC
• Embedded flash – 4MB
• Watchdog Timers
• Ambient Temperature (°C): -40 ~ 85
• Low Power
• Bluetooth 5, Bluetooth mesh
• High power mode (18 dBm)
• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• Advertising extensions
• Internal co-existence mechanism between Wi-Fi

Features of WiFi

• IEEE 802.11 b/g/n-compliant
• Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band
• Data rate up to 150 Mbps
• 4 Virtual Wi-Fi interfaces

Applications: best suitable for smart home, health care, consumer electronics, smart agriculture, retail and catering audio device, generic low-power IoT sensor hubs, generic low-power IoT data loggers.

---
