A Cheat Sheet With 13 Charts To Understand Symbols In Electrical Diagram

Atithya Amaresh

- Advertisement -

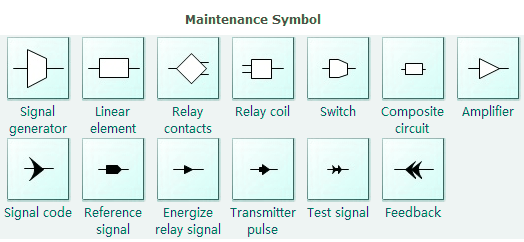

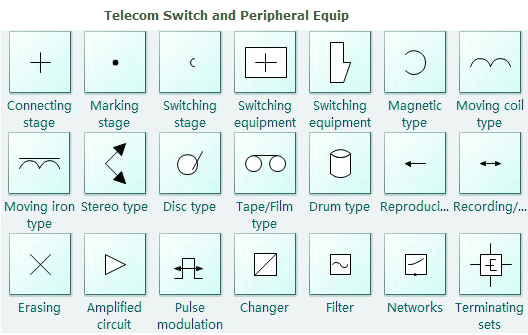

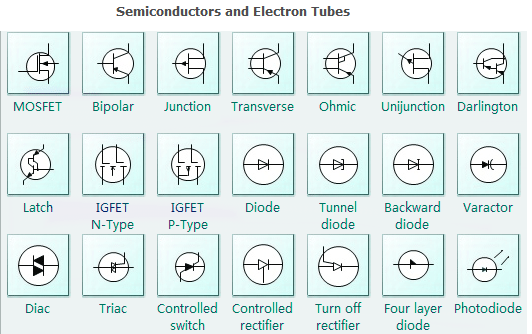

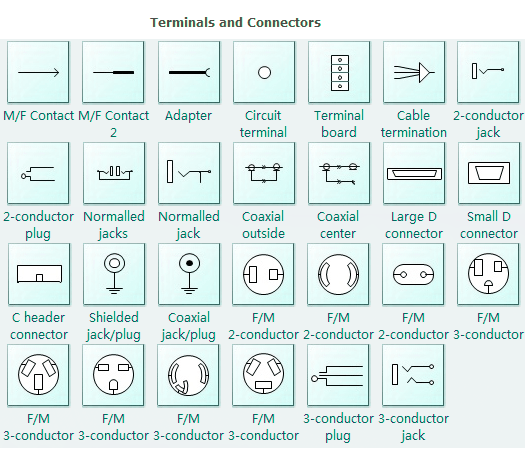

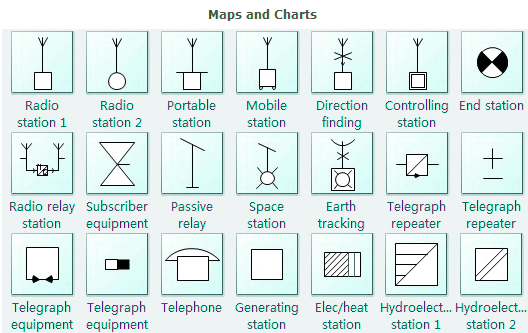

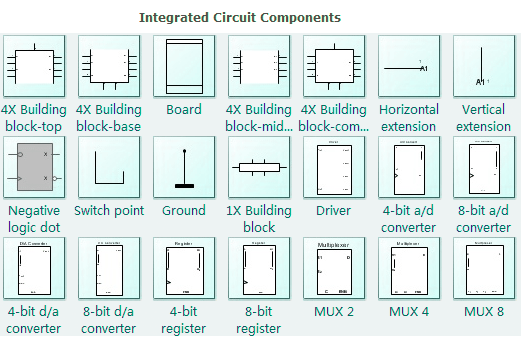

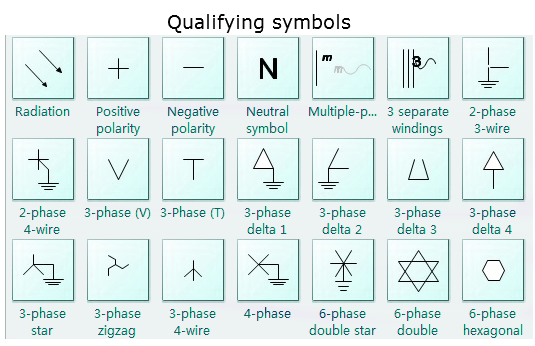

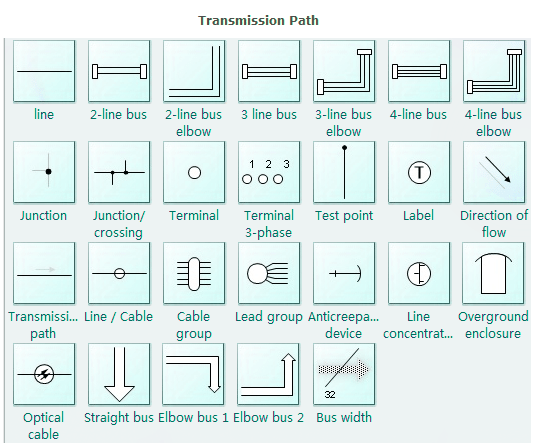

Imagine you are looking at a circuit diagram and there is one symbol that you are unable to interpret, what do you do? Look for your book and start searching or go to Google? Here’s a solution, bookmark this page and refer to this as your cheat sheet!

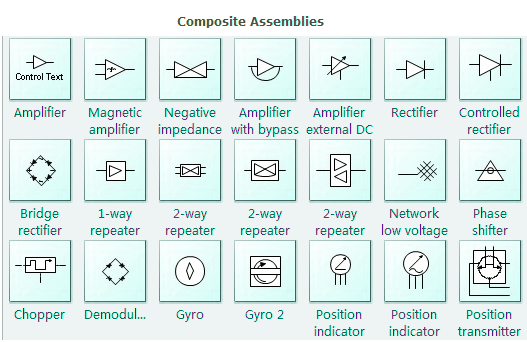

512_U232titledEB9_AnalogdigitalCB7_Composite_Assemblies7AZ_FIC86_Integrated_circuit_componentMaintenance_symbMaps_charts22Z_QI968_SemiElectu3CB_Switchre27F_Telecom576_Terminals__connectersFA5_Transmission
