A PSpice Switch Model For High-Power Application

PSpice introduces innovations transforming civic life and business sectors, yet a simulation software switch must first be designed and tested to enable solutions for high-intensity circuits.

A PSpice simulation software switch can be designed and tested in two instances so that a voltage/current-controlled switch is compatible with PSpice’s analogue behaviour modelling. This is necessary before implementing solutions in high-load circuits.

Simulation method

There are different Spice/PSpice methods to obtain equivalent circuits for different bias dependent circuits. A circuit method which is implemented by PSpice software is used to obtain the two electronic switches for the network (Figs: 1 and 2).

- Advertisement -

Table I describes (Figs: 1 and 2) the Spice/PSpice procedure to obtain two types of switch equivalents at DC using the value option of PSpice analogue behavioural model option of PSpice. The switching (on/off) action for two switches is obtained by

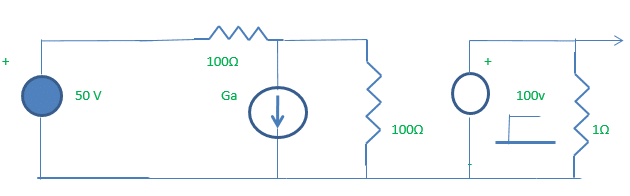

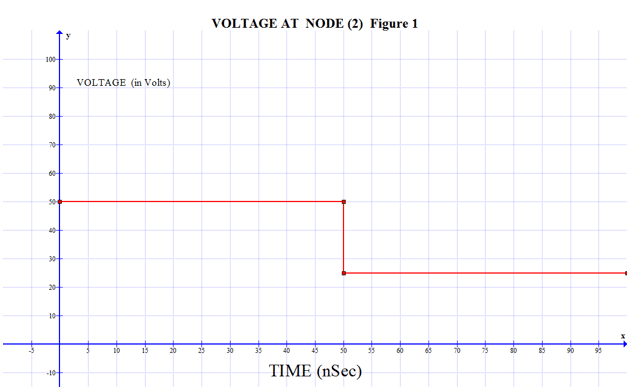

1. G1a which has a value of DC current as {-v(3)*0.01*v(2)/100} where v(3) is the voltage at node (3) described by voltage pulse at node (3) with V1 as the source. V(2) is voltage at node (2).

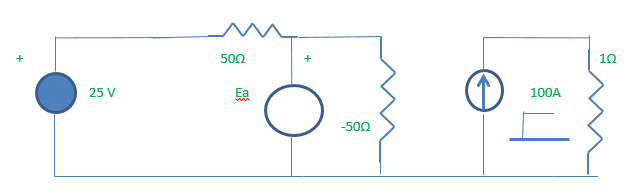

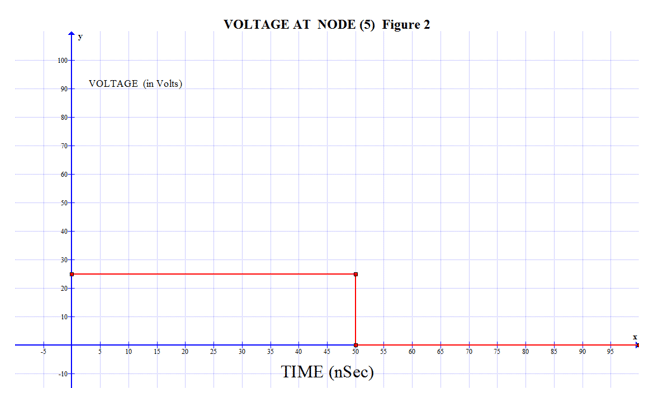

2. Ea which has a voltage value of [V(6)*0.01*i(E50)*50] where V(6) is the voltage at node (6)described by I06 current pulse and I(E50) is the current through dependent voltage source Ea.

The remaining high-power resistive circuit is represented by resistor networks.

- Advertisement -

Table I: A method to obtain DC equivalent power switches

Table II: A second example with power switch

Various possible applications in power electronics could be solved and analysed using dependent and controlled voltage/current sources to describe switches (in the design described( Tables I and II) .

The evolution of simulation tools such as Spice/PSpice led to the transformation of public life and industries by providing various opportunities for the innovation of high-power radio frequency (RF), microwave and millimetre-wave components that could be simulated before application. The design idea is useful to obtain solutions to high-power electronic circuits with switches.

References

• K. Bharath Kumar, Methods to obtain a new circuit whose Thevenin and Norton Equivalents are functions of two different Thevenin and Norton Circuits, Electrobits. Electronics Media, May 2, 2023.
• M. E. Van Valkenburg, Network Analysis, 3^rd Edition, Chapter IX, pp. 259-261, Prentice-Hall 1976
• A. P. Malvino, Electronic Principles, Chapter I, pp. 4-7, Tata-McGraw Hill 1998
• D. Karpaty,’Simple Method uses PSpice for Thevenin-equivalent Circuits’, EDN, Design Ideas, pp. 47-48, April 23, 2009
• A. Vladimirescu, K. Zhang, A. R. Newton, D. O. Pederson, A. Sangiovanni-Vincentelli, SPICE Version 2G User’s Guide, Dept. of Electrical Engineering and Computer Science, University of California, Berkeley, CA, USA
• MicroSim PSpice and Basics, Circuit Analysis Software, User’s Guide, Version 8.0, June 1997
• B. Epler, SPICE2 application notes for dependent sources, IEEE Circuits and Devices Magazine, pp. 36-44,3(5), 1984
• J. Xu and J. Yu, Equivalent circuit models of switches for SPICE simulation, Electronics Letters, Vol- 24, issue 7, pp. 437-438, 31 March 1988.
• K. Bharath Kumar, SPICE2G and PSPICE Circuit Simulation of H and G Two-port Networks, Recent trends in Electronics and Communications, Vol. 6. No. 3, pp- 16-25, 2019
• K. Bharath Kumar,’Inverse ABCD parameter determination using SPICE’, International Journal of Analog Integrated Circuits, IJAIC, Vol-3, issue 1, pp. 1-6, 2017
• R. W. Jensen and L. P. McNamee, Handbook of Circuit Analysis Languages and Techniques. Englewood Cliffs, New Jersey: Prentice Hall, 1976.
• Dean Frickey, Conversions Between S, Z, Y,h, ABCD and T parameters which are valid for Complex Source and Load Impedances, IEEE Transactions on Microwave Theory and Techniques (42):205-211, March 1994
• John Keown, PSpice and Circuit Analysis, 3d ed. New York: Merril (Macmillan Publishing Company), 1997
• K. Bharath Kumar, Using Substitution Theorem to Derive Thevenin Resistance Values with SPICE, EDN-Magazine, Aspencore, Design Ideas, September 10, 2021
• K. Bharath Kumar, SPICE to derive Thevenin and Norton equivalent Circuits, February 14, 2022, EDN Magazine Online edition, Aspencore Media
• James Gottling and Richard C. Dorf, Introduction to Electric Circuits, 3d edition (along with Hands-on PSpice with 3.5 Exercise Diskette set). New York:John Wiley and Sons, 1996.
• Roger Conant, Engineering Circuit Analysis and PSpice and Probe. New York: McGraw-Hill, 1993
• James A. Svoboda, PSpice for Linear Circuits. New York:John Wiley and Sons, 2002
• Thomas W. Thorpe, Computerized Circuit Analysis with SPICE. New York: Wiley Interscience, 1992.
• Muhammad H Rashid, Spice for circuits and electronics, 4^th edition 2019, Chapter IV, Cenage India.
• Nassir H. Sabah, Circuit Analysis with PSpice, CRC Press, March 2021
