Arduino-based Automatic Liquid Dispenser

This automatic liquid dispenser is based on an RFID reader and Arduino. Whenever you want to fill a water bottle or can, or petrol in a vehicle, or any other liquid for that matter, you just need to place the correct RFID card for the quantity of liquid required. The Arduino board reads the data from the RFID reader, which in turn drives the relays through ULN IC for that particular quantity.

Note: At the end of the article we have added the complete video tutorial with working.

efy tested

This system helps in marriages and other functions, where you see that even after filling water from the water can, if children or anyone leaves the tap open, then the water keeps flowing and gets wasted. Water saving will increase with this project. It also provides security for the customers from various frauds that occur at petrol pumps, like short fueling of petrol by distraction, and tweaking petrol-dispensing machines using integrated chips.

Video Tutorial In English:

Video Tutorial In Hindi:

- Advertisement -

List of Components Used in the Project

Table 1: Bill of Material
ComponentsQuantity
Arduino Uno (MOD1)1
EM-18 RFID reader module (MOD2)1
RFID tags/cards (125kHz)4
ULN 2003 IC (IC1)1
Water pump, 220V AC (Pump1 )1
Solenoid valve, 24V DC1
12V DC power adaptor1
Relay, 5V DC SPST (R1, R2)2

In this proposed project, the quantity of liquid dispensed depends on the delay time for each digital output pin of the Arduino, which gets added through Arduino programming. Here we have used five different RFID tags for the different delay times required to dispense 1/2 liter, 1 liter, 1.5 liters, 2 liters, and 2.5 liters. A solenoid valve has been used for the liquid to flow without much force.

The author’s prototype is shown in Fig. 1. The components required for the project are mentioned under the Bill of Material table.

DIY Automatic Liquid Dispenser

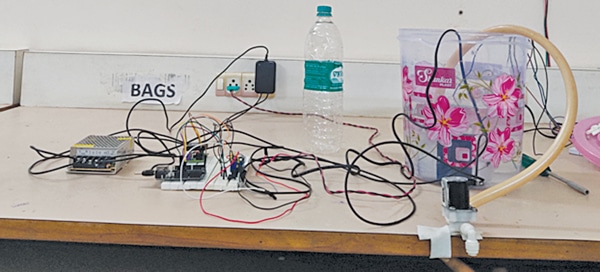

Fig. 1: Automatic Liquid Dispenser using Arduino

Automatic Liquid Dispenser – Coding

First, obtain the 12-digit unique identification number of the RFID tag on the serial monitor by uploading the source code (see Fig. 2) to the Arduino program. Before uploading, connect it to the EM-18 RFID module (MOD2), as shown in Fig. 3.

- Advertisement -
Code to obtain RFID card ID number

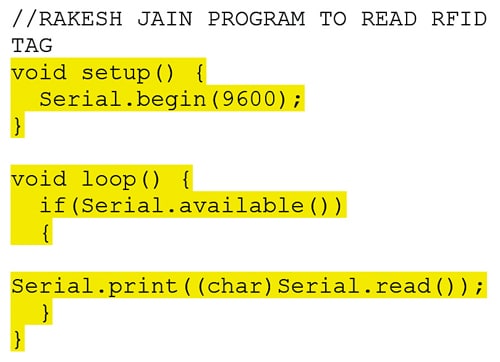

Fig. 2: Code to obtain RFID card ID number
EM-18 and Arduino programing circuit
Fig. 3: EM-18 and Arduino programming circuit

Put the RFID tag in front of the RFID reader module and see its 12-digit decoded value. The decoded values for the author’s RFID tags are shown in Table 2.

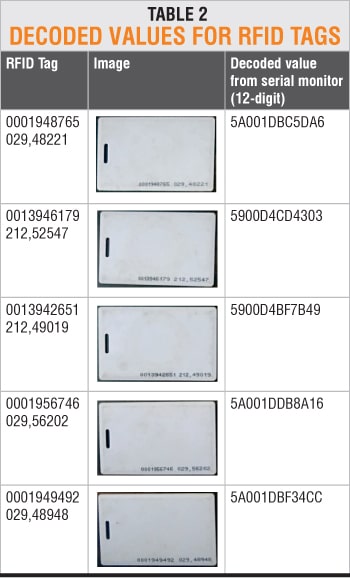

Decoded Values for RFID Tags

Next, prepare the code that checks the RFID card number and gives the signal to relay to dispense the liquid according to that RFID card. Here you need to change and set the card ID number according to your RFID card ID number. Fig. 4 shows a snippet of the source code.

Automatic Liquid Dispenser Arduino Code

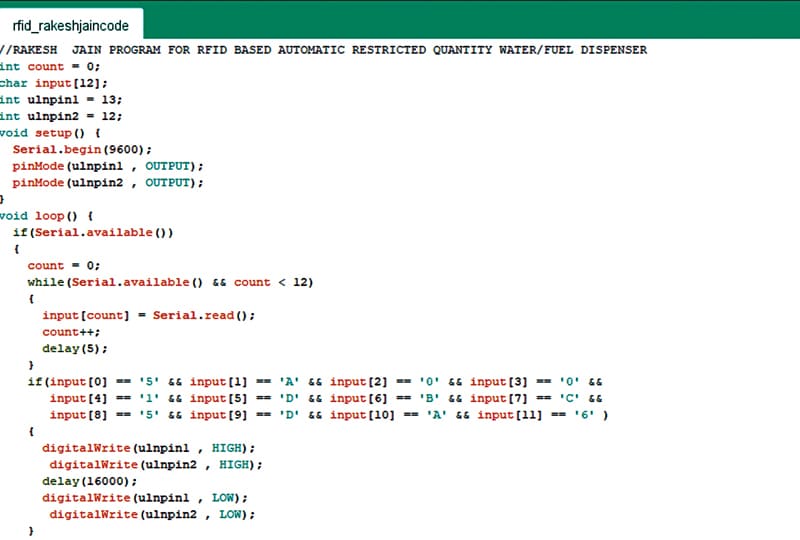

Fig. 4: Snippet of the source code

Automatic Liquid Dispenser – Circuit Connection

Connect all the components according to the circuit diagram shown in Fig. 5.

Arduino based Automatic Liquid Dispenser Circuit diagram
Fig. 5: Circuit diagram

Whenever an RFID tag is put in front of the RFID reader, both relays get energized. The first relay drives the water/fuel pump motor and the second relay drives the solenoid valve. Here, ULN2003 relay driver IC is being used to drive both relays.

The circuit can fill half a liter of water/fuel in 16 seconds, and so one liter in 32 seconds, and so on, taking 80 seconds for 2.5 liters.

Must Check: Interesting Arduino Project Ideas

Download Source Code

You can also check the automatic water dispenser project that we build previously.
