This solution enables precise servo control, real-time communication, and seamless integration with ROS.
The development of robotic systems requires precise control and efficient communication between various components. This ROS-based robot body controller reference design provides engineers with a reliable solution for managing multiple servos in robotic applications. By integrating the Robot Operating System (ROS), this design simplifies development, enhances flexibility, and accelerates time-to-market for robotics engineers. With built-in support for Ethernet, USB, and Wi-Fi-based Pub/Sub communication, this reference design enables seamless interaction between ROS nodes, making it a valuable resource for engineers working on service robots, defense applications, healthcare robotics, and agricultural automation.

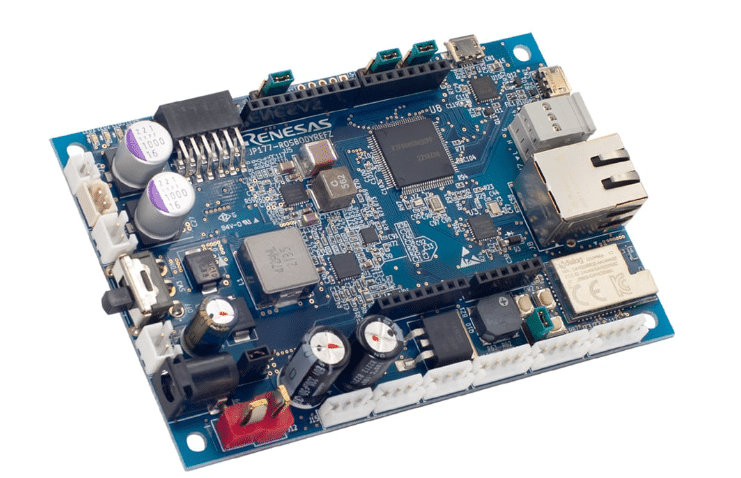

At the core of this reference design JP177-ROSBODYREFZ by Renesas Electronics Corporation is the RA6M5 microcontroller unit (MCU), powered by the high-performance Arm® Cortex®-M33 processor. This MCU facilitates real-time control and efficient communication with connected devices, ensuring precise servo actuation. The design supports XRCE-DDS, a lightweight middleware for real-time communication within ROS, enabling efficient data exchange between robotic components. By utilizing both 1-wire UART and RS-485 interfaces, this system can control multiple servos simultaneously, providing scalability for complex robotic architectures.
Power management is a critical aspect of any robotic system, and this reference design incorporates the ISL81401 buck-boost controller along with other power devices to ensure stable and accurate voltage supply. This enables optimized performance for each servo while maintaining overall system efficiency. The integration of these power solutions not only enhances reliability but also reduces design complexity, making it easier for engineers to develop robust robotic applications.
The ROS-based body controller reference design is particularly well-suited for applications in logistics, warehouse automation, defense, security, agriculture, and healthcare. Service robots used for material handling and warehouse management can benefit from the precise motion control enabled by this system. In defense and security applications, the ability to control multiple servos efficiently is crucial for autonomous surveillance and robotic defense units. Agricultural robotics can leverage this design for automated harvesting, irrigation, and crop monitoring, while healthcare applications can utilize it for robotic assistance in patient care and rehabilitation.
By leveraging the advanced capabilities of the RA6M5 MCU and seamless ROS integration, this reference design simplifies the development of intelligent robotic systems. It provides engineers with a reliable and scalable solution for servo control, communication, and power management, ultimately reducing development time and improving overall system performance. Whether for industrial automation, service robotics, or specialized applications, this design serves as a strong foundation for engineers looking to create innovative and efficient robotic solutions.
Renesas Electronics Corporation has tested this reference design. It comes with a bill of materials (BOM), schematics, assembly drawing, printed circuit board (PCB) layout, and more. The company’s website has additional data about the reference design. To read more about this reference design, click here.
