Wireless Headphones Cut the Cord

- Advertisement -

We have already deep-dived into the age of ‘compact’ and ‘hands-free,’ where “less is the new more.” Even headphones manufacturers have found a way to brilliantly improve their products to fit the desires of customers.

Apple’s bold step to exclude the conventional 3.5mm headphone jack from its latest iPhone 7 smartphone series for the purpose of space utility maximisation and water-resistance is a case in point. New players too are not far behind. For instance, Seattle-based Human Inc. is coming up with a new product called ‘Sound’ that gestates touch-based earphone control along with language translation and multiple audience connect. Such developments give reasons enough to believe that the future of wireless headphones is now.

How Bluetooth headphones work

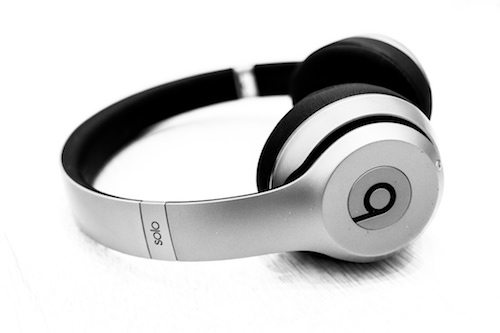

Wireless headphone designs—in-ear, on-ear and over-ear (from top to bottom)
Wireless headphone designs—in-ear, on-ear and over-ear (from top to bottom)

Wireless headphones or earphones work on digitally transmitted waves—via infrared (IR), radio-frequency (RF) waves or Bluetooth—from source. While each device has its own benefits and drawbacks, in this article we will restrict ourselves to Bluetooth-based headphones as these are portable, flexible and in demand.

- Advertisement -

Bluetooth-driven wireless headphones consist of a receiver that receives the signal transmitted from the Bluetooth device, a small amplifier to strengthen the signal and a battery pack to run the system. The device with Bluetooth (smartphone, tablet, laptop among others) has a small computer chip inside that contains the Bluetooth radio module and software that enable the two devices to pair. Bluetooth digitally transmits the audio through a low-power radio signal, which is received by the receiver of the headphone.

The checklist

Sound quality.

Composed of magnet, voice coils and a diaphragm, the driver unit of a headphone converts electrical energy into sound pressure. Larger-diameter drivers mean bigger speakers, consequently giving stronger audio output. However, the output quality directly depends on driver components. On an average, driver diameter is 8 to 12mm for earphones and 20 to 50mm for headphones.

Sound quality can be judged from factors like sensitivity and sound pressure level (SPL), impedance and total harmonic distortion (THD). SPL decides the loudness range of a headphone. On an average, most headphones have an SPL in the range of 85 to 120dB SPL/mW. Scale of impedance (the resistance to the current that creates the sound) decides the life of the device. Impedance of basic-level headphones tends to be lower (around 32 ohms), requiring less current to work. But this may create background noise. High-end headphones have a higher impedance (up to 330 ohms) and require internal amplifiers for operation, but this also prevents early headphone damage. THD level indicates distortion of sound under high volume. Lower THD is always desirable, and on an average, headphones have less than 1% THD.


Select the headphone design as per your intended application, comfort and personal preferences. Headphones come in in-ear, on-ear and over-ear designs. In-ear (canal) design sits in the ear canal directly, providing more impactful sound and better exclusion of external noise. In on-ear (supra-aural) design, pieces rest on top of the ear, preventing trapping of heat on the ears. This design is, however, less effective in noise blocking. Over-ear (circumaural) design covers ears completely, ensuring better quality and range of sound. The huge size of the design accommodates a bigger engine, amplifying the sound output (especially the bass experience) by multi-fold.

Battery life.

Wireless headphones may come with a built-in rechargeable or disposable battery, the former being more common in popular brands. On an average, they use a 300mAh lithium-ion polymer battery that provides playback for up to ten hours. High-end products pack battery capacity of around 600mAh, allowing a run-time of 20 hours or more. The built-in battery can be charged by a standard mini or micro-USB cable. It takes three to four hours to fully replenish the battery.

aptX support.

aptX is an upgraded codec, presently owned by Qualcomm, which enhances the audio quality via a bitrate efficiency algorithm—providing enhanced sound quality through Bluetooth. The prerequisite is that both the source device and the audio equipment must have aptX to utilise the feature.

Presently, most of the popular audio equipment and Android smartphones and devices support and have aptX built into them. Android devices without aptX can also be upgraded. MAC and Windows equipment may also be aptX-compatible, depending on their hardware. A higher upgrade, called aptX HD, is also out there, which provides even better audio quality than CD-scale. However, the number of devices supporting aptX HD is limited presently.

Noise cancellation.

Headphones with noise-cancellation capability have built-in microphones and electronic chips that record the ambient noise and create anti-phase sound waves (same amplitude but completely inverse phase) accordingly, which cancel out the original noise. This is very effective against low-frequency noise. High-frequency noise, however, is not controlled much by this technique.

Usually, noise-cancellation capability varies within products based on the quality of components. If tested separately, it can be measured by the amount of decibels that is decreased for a given frequency of sound. The performance completely depends on the value of the sound frequency. For example, a headphone that claims to drop 30dB sound may be doing so at 60Hz but might cancel only 10dB at 480Hz, and so on.

Indian market: Latest offerings

The Indian market has a substantial range of wireless headphones for buyers to select from. Wireless headphones cost more than their wired counterparts, but provide unparalleled sound experience.

High-end products.

The latest offering from the stable of Bose, QuietComfort 35, costs around  30,000. Featuring the company’s innovative noise-cancellation technology and 20 hours of battery life, these headphones are wrapped in a polyester-based sophisticated covering material, corrosion-resistant stainless steel, glass-filled nylon and impact-resistant materials.

Momentum Wireless Over-Ear by Sennheiser costs around  35,000. It features NFC and Bluetooth connectivity with aptX support, Noise-Guard active noise-cancellation technology and hands-free Voice Max microphone, making it very easy to use.

Mid-range products.

In the medium price range, Plantronics has introduced models like BackBeat Pro 2, BackBeat Go 3 and BackBeat Fit to suit diverse application areas like sports, work and travel. These headphones cost between  6000 and  11,000.

Another player, Jaybird, Logitech-owned sports headphone specialist, has come up with the Jaybird X3 that features passive noise-isolation technology, sweat-proof built with X-Fit System, and in-line remote. It costs between  13,000 and  19,000.

Low-end products.

Wireless headphones in this segment are priced between  1000 and  5000. Companies like Zebronics, Philips, Skullcandy and Sportszee are producing and delivering quality wireless headphones keeping the consumers’ price limitations in mind. You can also find an array of base-range headphones from other players, like LG Tone+ HBS 730, Nokia BH 505 and Jabra Halo Smart.
